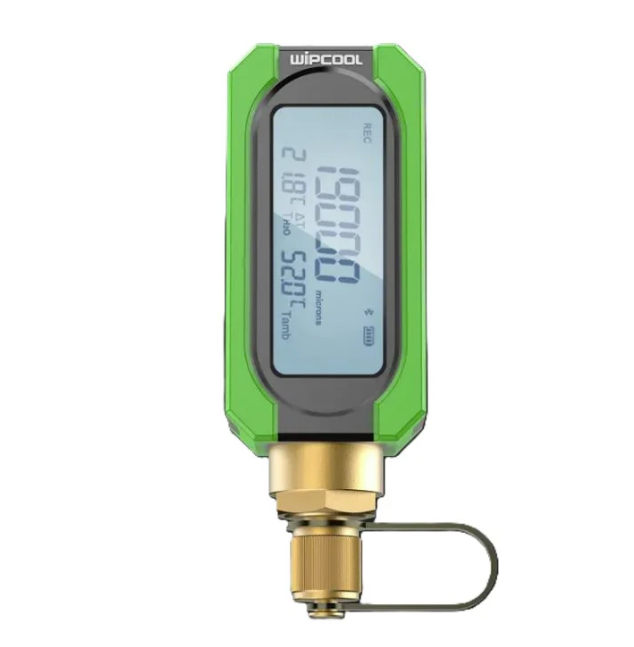

WIPCOOL Digital Vacuum Gauge – MVG1

The WIPCOOL MVG1 Digital Vacuum Gauge is a high-precision tool designed for HVAC, refrigeration, and general service applications. With a large backlit LCD display, intelligent H₂O status detection, and versatile measurement units, this gauge ensures accurate readings and efficient system monitoring. Its USB Type-C interface allows for easy charging and firmware updates, making it a reliable choice for modern HVAC professionals.

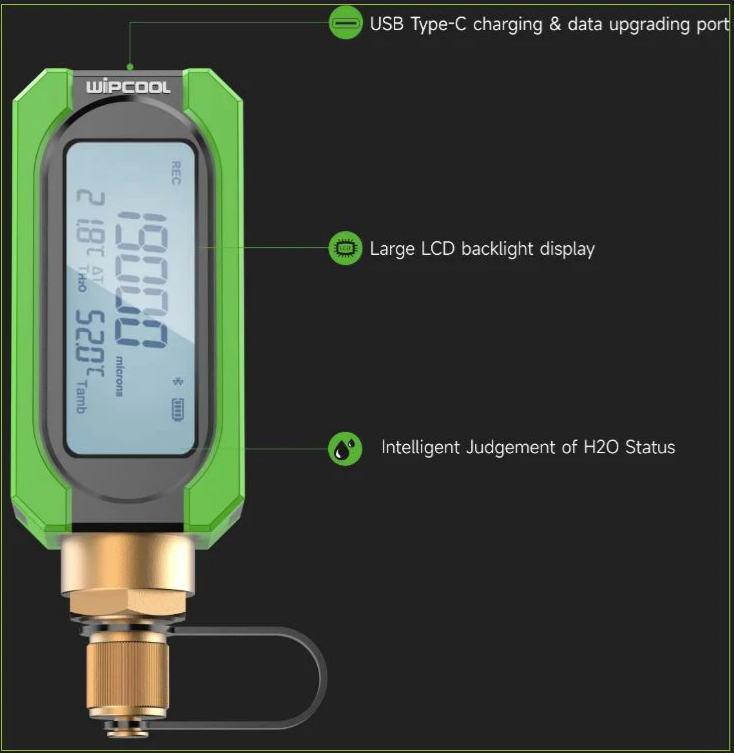

Key Features

• Large LCD Backlight Display: Clear visibility even in low-light environments
• USB Type-C Port: For charging and data/firmware updates
• Intelligent H₂O Status Detection: Automatically evaluates moisture conditions
• High Accuracy: ±10 microns for 1–10,000 microns, ±20% for 10,000–19,000 microns
• Multiple Vacuum Units: microns, mTorr, inHg, Pa, Torr, KPa, mbar, psia

Specifications

• Measuring Range: 0–19,000 microns
• Resolution:
  • 1–400 microns → 1 micron
  • 400–3,000 microns → 10 microns
  • 3,000–10,000 microns → 100 microns
  • 10,000–19,000 microns → 250 microns
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Interface: 1/4″ SAE connection
• Battery: Rechargeable lithium battery (1,000 mAh)
• Overload Pressure: 27.5 bar

Warranty

12 months from the date of purchase.
All warranties exclude consumables such as filters, gaskets, leads, batteries, fuses, sensors, cases, etc.
