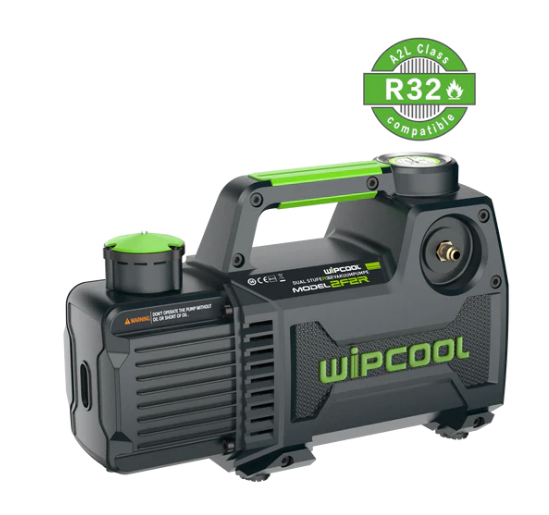

WIPCOOL 2F5R Series Dual Stage R32 Vacuum Pump

Engineered for modern HVAC and refrigeration applications, the WIPCOOL 2F5R Dual Stage Vacuum Pump delivers high efficiency, reliability, and safety—ideal for use with next-generation refrigerants like R32 as well as legacy refrigerants such as R22, R410A, and R1234yf. Its lightweight, compact design and brushless motor technology make it a professional-grade solution for fast and effective vacuuming.

Key Features

• Fast & Efficient Vacuuming: Achieve up to 15 microns ultimate vacuum with maximum flow rate of 11 CFM (312 L/min)
• R32 Compatible: Non-sparking design suitable for flammable A2L/A2 refrigerants while also backward compatible with older refrigerants
• Built-In Solenoid Valve: Prevents backflow into the system for safer operation
• Overhead Vacuum Gauge: Easy-to-read, compact design for precise monitoring
• Durable Construction: Reinforced aluminum alloy oil tank with excellent heat dissipation and chemical resistance
• Lightweight & High Performance: Brushless DC motor offers powerful start-up torque, high efficiency, and long service life
• Oil Visibility: Oversized sight glass makes it easy to monitor oil level and color

Specifications

• Model: JAV2F5R
• Voltage: 230V~/50-60Hz or 115V~/60Hz
• Ultimate Vacuum: 15 microns
• Flow Rate (Max): 11 CFM / 312 L/min
• Input Power: 1 HP
• Oil Capacity: 480 ml
• Weight: 10.2 kg
• Dimensions (mm): 410 x 150 x 250
• Inlet Port: 1/4" & 3/8" SAE

Why Choose R32-Compatible Vacuum Pumps?

R32 refrigerant offers higher energy efficiency, reduced electricity consumption (~10% less than R22 systems), and lower global warming potential (GWP is 1/3 of R22 and R410A). The 2F5R pump is specifically engineered for safe operation with flammable refrigerants, eliminating potential ignition sources and ensuring compliant, high-performance vacuuming.
