Description
Description

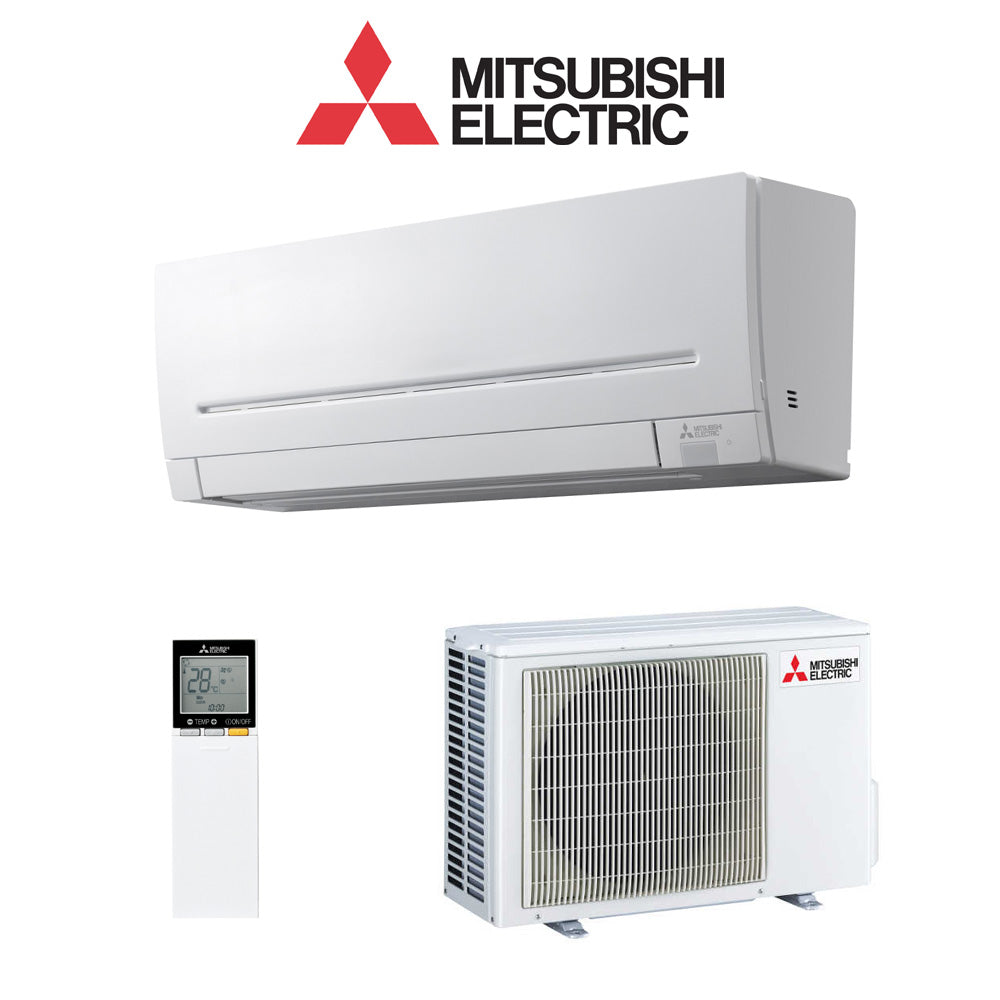

The MSZ-AP42VGKD2 4.2kW Split System from Mitsubishi Electric is a versatile reverse cycle air conditioner, ideal for single rooms, bedrooms, and compact living areas. Offering both cooling and heating, it delivers year-round comfort with quiet and efficient operation.
With built-in Wi-Fi control, you can manage your air conditioner remotely via smartphone app, giving you full control over your indoor climate anytime, anywhere. Dual Barrier Coating helps maintain cleaner airflow and enhances unit efficiency by reducing dust and grease buildup.
The MSZ-AP42VGKD2 also includes vertical and horizontal vanes for even air distribution, a Night Mode to reduce noise and light disturbance, and a weekly timer for convenient scheduling tailored to your lifestyle.
Key Features:
- Built-in Wi-Fi control for remote operation
- Reverse cycle heating and cooling for year-round comfort
- Quiet operation suitable for bedrooms and living areas
- Dual Barrier Coating for cleaner, more efficient airflow
- Night Mode to minimise noise and light disturbance
- Weekly timer for flexible scheduling
- Vertical and horizontal vanes for optimal air distribution
Specifications:
- Capacity: 4.2kW Cooling / 5.4kW Heating
- Indoor Type: Wall Mounted
- Power Supply: Single Phase
- Refrigerant: R32
| Indoor Unit | MSZ-AP42VGKD2-A2 | |||
| Outdoor Unit | MUZ-AP42 VG(D*5)2-A2 | |||
| Refrigerant | R32 | |||
|
Cooling
|
Capacity [Rated]*1 | kW | 4.2 | |
| Capacity [Min-Max] | kW | 0.90 – 4.80 | ||
| Total Input [Rated]*1 | kW | 1.19 | ||
| Total Input [Min-Max] | kW | 0.15 – 1.90 | ||
| EER | 3.53 | |||
| AEER | 3.52 | |||
|
TCSPF (Residential)
|
Hot | 5.79 | ||
| Average | 5.53 | |||
| Cold | 5.9 | |||
|
ZERL (Residential) Star Rating*2
|
Hot | 4 | ||
| Average | 4 | |||
| Cold | 4 | |||
| Running Current [Rated]*3 | A | 5.3 | ||
|
Sound Pressure Level
|
In [Quiet-Lo-Mid- Hi-SHi] | dBA | 26 – 29 – 35 – 40 – 46 | |
| Out (PWL) | dBA | 51 (65) | ||
| Air Volume (In) [Quiet-SHi] | L/s | 90 – 223 | ||
|
Heating
|
Capacity [Rated]*1 | kW | 5.4 | |
| Capacity [Min-Max] | kW | 1.30 – 6.00 | ||
| Total Input [Rated]*1, 5 | kW | 1.43 | ||
| Total Input [Min-Max] | kW | 0.26 – 1.90 | ||
| COP | 3.78 | |||
| ACOP | 3.77 | |||
|
HSPF (Residential)
|
Hot | 5.05 | ||
| Average | 4.35 | |||
| Cold | 3.88 | |||
|
ZERL (Residential) Star Rating*2
|
Hot | 3.5 | ||
| Average | 2.5 | |||
| Cold | 2 | |||
| Running Current [Rated]*3 | A | 6.3 | ||
|
Sound Pressure Level
|
In [Quiet-Lo-Mid- Hi-SHi] | dBA | 26 – 29 – 35 – 40 – 46 | |
| Out (PWL) | dBA | 52 (65) | ||
| Air Volume (In) [Quiet-SHi] | L/s | 88 – 233 | ||
| Max. Running Current | A | 10 | ||
|
Indoor Unit
|
Input [Rated] (Cooling/Heating) | W | 29/33 | |
| Dimensions [HxWxD] | mm | 299 x 798 x 219 | ||
| Weight | kg | 10.5 | ||
|
Outdoor Unit
|
Dimensions [HxWxD] | mm | 550 x 800 x 285 | |
| Weight | kg | 35.0(VG)/36.0(VGD) | ||
| Breaker Size | A | 10 | ||
|
Piping
|
Diameter [Liquid/Gas] | mm | ø6.35/ø9.52 | |
| Max. Length/Height | m | 20/12 | ||
|
Guaranteed Operating Range [Outdoor]
|
Cooling | °C | -10 ~ 46 | |
| Heating | °C | -15 ~ 24 | ||
| Refrigerant Amount [Pre-Charged] | kg | 0.7 | ||
