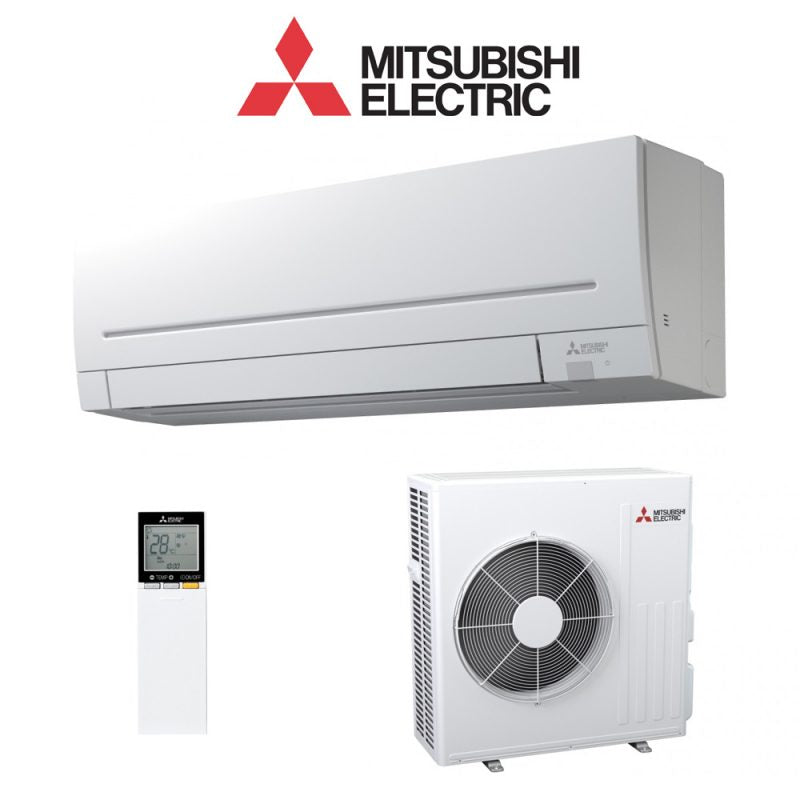

Mitsubishi Electric MSZ-AP80VGKD2 7.8kW Split System Air Conditioner (Wi-Fi)
Mitsubishi Electric MSZ-AP80VGKD2 7.8kW Split System Air Conditioner (Wi-Fi) is backordered and will ship as soon as it is back in stock.
Pickup available at HVACZone
Usually ready in 24 hours
Local Pickup Available
Local Pickup Available
We offer free local pickup from of Clyde North Store
Mitsubishi Electric MSZ-AP80VGKD2 7.8kW Split System Air Conditioner (Wi-Fi) is backordered and will ship as soon as it is back in stock.
Description
Description
The MSZ-AP80VGKD2 7.8kW Split System from Mitsubishi Electric delivers powerful reverse cycle heating and cooling, making it perfect for single rooms, compact homes, or larger living areas. Designed for year-round comfort, it combines efficiency, quiet operation, and advanced air quality features.
Equipped with built-in Wi-Fi control, you can adjust temperature settings remotely from your smartphone or tablet. The Dual Barrier Coating protects the system from dust, smoke, and grease buildup, keeping airflow clean and efficient. Night Mode ensures minimal disturbance during sleep, and the weekly timer allows personalised scheduling. Vertical and horizontal vanes provide even air distribution for consistent comfort throughout the room.
Key Features:
- Built-in Wi-Fi for remote control via smartphone or tablet
- Reverse cycle heating and cooling for year-round comfort
- Quiet operation ideal for bedrooms and living spaces
- Dual Barrier Coating for cleaner, more efficient airflow
- Night Mode for minimal noise during sleep
- Weekly timer for customised scheduling
- Vertical and horizontal vanes for even air distribution
Specifications:
- Capacity: 7.8kW Cooling / 9.0kW Heating
- Indoor Type: Wall Mounted
- Power Supply: Single Phase
- Refrigerant: R32
| Indoor Unit | MSZ-AP80VGKD2-A2 | |||
| Outdoor Unit | MUZ-AP80VG(D*4)2-A2 | |||
| Refrigerant | R32 | |||
|
Cooling
|
Capacity [Rated]*1 | kW | 7.8 | |
| Capacity [Min-Max] | kW | 2.00 – 9.20 | ||
| Total Input [Rated]*1 | kW | 2.36 | ||
| Total Input [Min-Max] | kW | 0.43 – 3.20 | ||
| EER | 3.31 | |||
| AEER | 3.3 | |||
|
TCSPF (Residential)
|
Hot | 5 | ||
| Average | 4.77 | |||
| Cold | 5.08 | |||
|
ZERL (Residential) Star Rating*2
|
Hot | 3.5 | ||
| Average | 3 | |||
| Cold | 3.5 | |||
| Running Current [Rated]*3 | A | 10.8 | ||
|
Sound Pressure Level
|
In [Quiet-Lo-Mid- Hi-SHi] | dBA | 30 – 37 – 41 – 45 – 53 | |
| Out (PWL) | dBA | 56 (69) | ||
| Air Volume (In) [Quiet-SHi] | L/s | 160 – 342 | ||
|
Heating
|
Capacity [Rated]*1 | kW | 9 | |
| Capacity [Min-Max] | kW | 2.20 – 11.00 | ||
| Total Input [Rated]*1 | kW | 2.55 | ||
| Total Input [Min-Max] | kW | 0.42 – 3.65 | ||
| COP | 3.53 | |||
| ACOP | 3.53 | |||
|
HSPF (Residential)
|
Hot | 4.68 | ||
| Average | 4.07 | |||
| Cold | 3.54 | |||
|
ZERL (Residential) Star Rating*2
|
Hot | 3 | ||
| Average | 2.5 | |||
| Cold | 2 | |||
| Running Current [Rated]*3 | A | 11.3 | ||
|
Sound Pressure Level
|
In [Quiet-Lo-Mid- Hi-SHi] | dBA | 30 – 37 – 41 – 45 – 51 | |
| Out (PWL) | dBA | 55 (69) | ||
| Air Volume (In) [Quiet-SHi] | L/s | 170 – 320 | ||
| Max. Running Current | A | 16.5 | ||
|
Indoor Unit
|
Input [Rated] (Cooling/Heating) | W | 55/45 | |
| Dimensions [HxWxD] | mm | 325 x 1100 x 257 | ||
| Weight | kg | 17 | ||
|
Outdoor Unit
|
Dimensions [HxWxD] | mm | 880 x 840 x 330 | |
| Weight | kg | 53 | ||
| Breaker Size | A | 20 | ||
|
Piping
|
Diameter [Liquid/Gas] | mm | ø6.35/ø12.70 | |
| Max. Length/Height | m | 30/15 | ||
|
Guaranteed Operating Range [Outdoor]
|
Cooling | °C | -10 ~ 46 | |
| Heating | °C | -15 ~ 24 | ||
| Refrigerant Amount [Pre-Charged] | kg | 1.5 | ||
