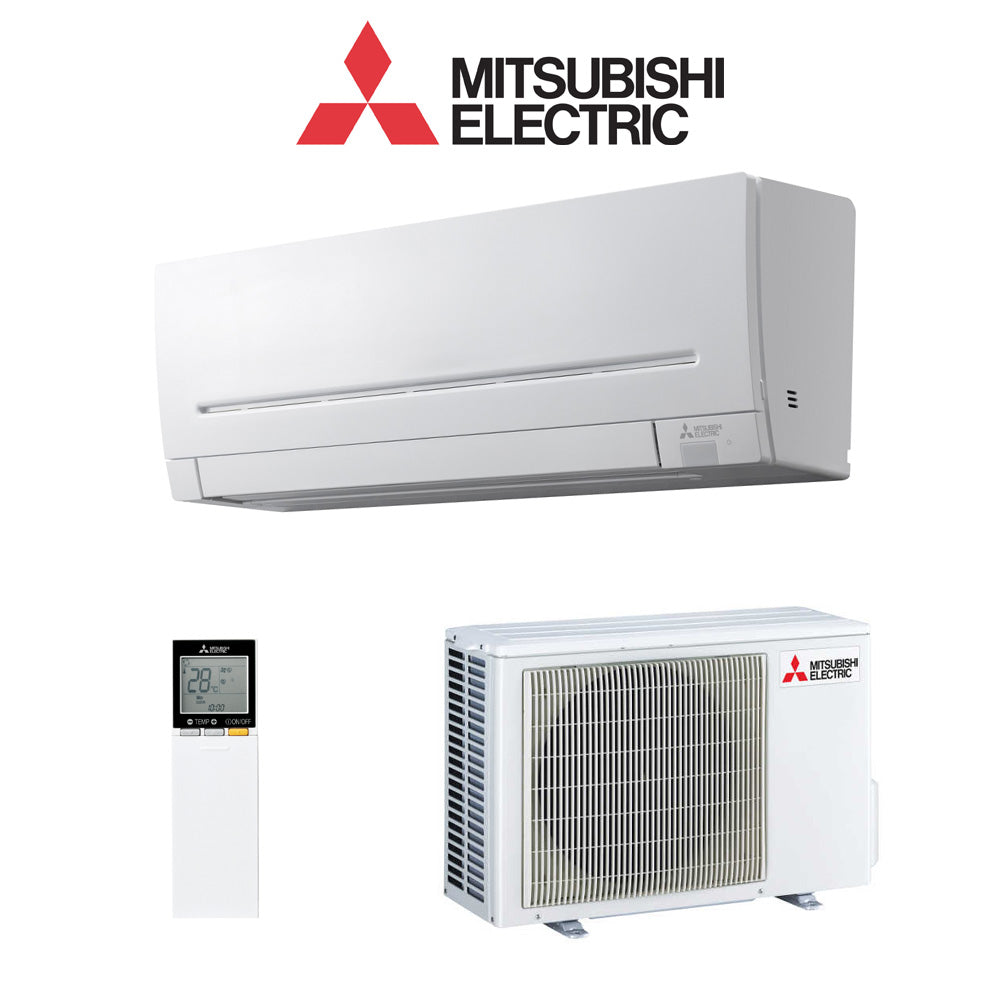

Mitsubishi Electric MSZ-AP25VGKD2 2.5kW Split System Air Conditioner (Wi-Fi)
Mitsubishi Electric MSZ-AP25VGKD2 2.5kW Split System Air Conditioner (Wi-Fi) is backordered and will ship as soon as it is back in stock.
Pickup available at HVACZone
Usually ready in 24 hours
Local Pickup Available
Local Pickup Available
We offer free local pickup from of Clyde North Store
Mitsubishi Electric MSZ-AP25VGKD2 2.5kW Split System Air Conditione...
Mitsubishi Electric MSZ-AP25VGKD2 2.5kW Split System Air Conditioner (Wi-Fi) is backordered and will ship as soon as it is back in stock.
Description
Description
The MSZ-AP25VGKD2 2.5kW Split System from Mitsubishi Electric is a reliable and energy-efficient solution for year-round comfort in bedrooms, living areas, and compact homes. Designed with advanced features and quiet operation, this reverse cycle system delivers both cooling and heating to keep your indoor environment comfortable in any season.
Engineered for modern living, this unit includes built-in Wi-Fi control, allowing you to manage your air conditioner remotely via a compatible smartphone app. The system also features Dual Barrier Coating, which helps reduce dust and grease build-up inside the unit, maintaining performance and cleaner airflow over time.
With vertical and horizontal vanes, airflow is evenly distributed throughout the room, while the Night Mode ensures minimal noise and reduced light disturbance—perfect for restful sleep. The addition of a weekly timer provides convenient scheduling to suit your lifestyle.
Key Features:
- Built-in Wi-Fi control for remote operation
- Reverse cycle heating and cooling for year-round comfort
- Quiet operation, ideal for bedrooms and living spaces
- Dual Barrier Coating for improved cleanliness and efficiency
- Night Mode for reduced noise and light disturbance
- Weekly timer for flexible scheduling
- Vertical and horizontal vanes for even airflow distribution
Specifications:
- Capacity: 2.5kW Cooling / 3.2kW Heating
- Indoor Type: Wall Mounted
- Power Supply: Single Phase
- Refrigerant: R32
| Indoor Unit | MSZ-AP25VGKD2-A2 | |||
| Outdoor Unit | MUZ-AP25 VG(D*5)2-A2 | |||
| Refrigerant | R32 | |||
|
Cooling
|
Capacity [Rated]*1 | kW | 2.5 | |
| Capacity [Min-Max] | kW | 1.10 – 3.60 | ||
| Total Input [Rated]*1 | kW | 0.5 | ||
| Total Input [Min-Max] | kW | 0.21 – 0.99 | ||
| EER | 5 | |||
| AEER | 4.97 | |||
|
TCSPF (Residential)
|
Hot | 7.85 | ||
| Average | 7.31 | |||
| Cold | 7.61 | |||
|
ZERL (Residential) Star Rating*2
|
Hot | 6 | ||
| Average | 5.5 | |||
| Cold | 6 | |||
| Running Current [Rated]*3 | A | 2.6 | ||
|
Sound Pressure Level
|
In [Quiet-Lo-Mid- Hi-SHi] | dBA | 19 – 24 – 31 – 38 – 44 | |
| Out (PWL) | dBA | 46 (59) | ||
| Air Volume (In) [Quiet-SHi] | L/s | 82 – 205 | ||
|
Heating
|
Capacity [Rated]*1 | kW | 3.2 | |
| Capacity [Min-Max] | kW | 1.30 – 5.00 | ||
| Total Input [Rated]*1, 5 | kW | 0.67 | ||
| Total Input [Min-Max] | kW | 0.35 – 1.40 | ||
| COP | 4.78 | |||
| ACOP | 4.75 | |||
|
HSPF (Residential)
|
Hot | 5.48 | ||
| Average | 4.99 | |||
| Cold | 4.59 | |||
|
ZERL (Residential) Star Rating*2
|
Hot | 3.5 | ||
| Average | 3 | |||
| Cold | 3 | |||
| Running Current [Rated]*3 | A | 3.3 | ||
|
Sound Pressure Level
|
In [Quiet-Lo-Mid- Hi-SHi] | dBA | 18 – 25 – 31 – 38 – 42 | |
| Out (PWL) | dBA | 49 (59) | ||
| Air Volume (In) [Quiet-SHi] | L/s | 82 – 190 | ||
| Max. Running Current | A | 7.1 | ||
|
Indoor Unit
|
Input [Rated] (Cooling/Heating) | W | 23/19 | |
| Dimensions [HxWxD] | mm | 299 x 798 x 219 | ||
| Weight | kg | 10.5 | ||
|
Outdoor Unit
|
Dimensions [HxWxD] | mm | 550 x 800 x 285 | |
| Weight | kg | 34.0 (VG)/35.0(VGD) | ||
| Breaker Size | A | 10 | ||
|
Piping
|
Diameter [Liquid/Gas] | mm | ø6.35/ø9.52 | |
| Max. Length/Height | m | 20/12 | ||
|
Guaranteed Operating Range [Outdoor]
|
Cooling | °C | -10 ~ 46 | |
| Heating | °C | -15 ~ 24 | ||
| Refrigerant Amount [Pre-Charged] | kg | 0.7 | ||
