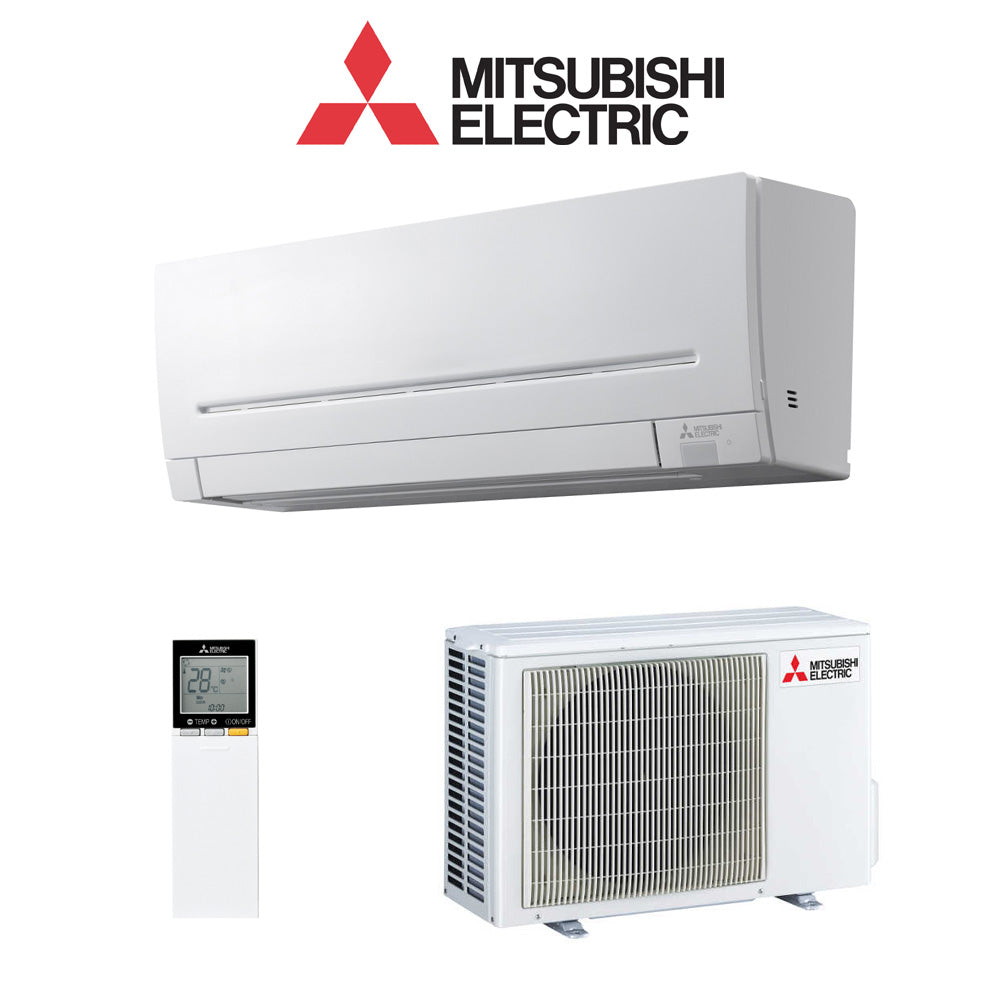

Mitsubishi Electric MSZ-AP20VGD2 2.0kW Split System Air Conditioner
Mitsubishi Electric MSZ-AP20VGD2 2.0kW Split System Air Conditioner is backordered and will ship as soon as it is back in stock.
Pickup available at HVACZone
Usually ready in 24 hours
Local Pickup Available
Local Pickup Available
We offer free local pickup from of Clyde North Store
Mitsubishi Electric MSZ-AP20VGD2 2.0kW Split System Air Conditioner
Mitsubishi Electric MSZ-AP20VGD2 2.0kW Split System Air Conditioner is backordered and will ship as soon as it is back in stock.
Description
Description
The MSZ-AP20VGD2 2.0kW Split System from Mitsubishi Electric is a compact and efficient climate control solution, perfect for bedrooms, studies, and small living spaces. Designed to deliver reliable performance year-round, this reverse cycle system provides both cooling in summer and heating in winter for consistent indoor comfort.

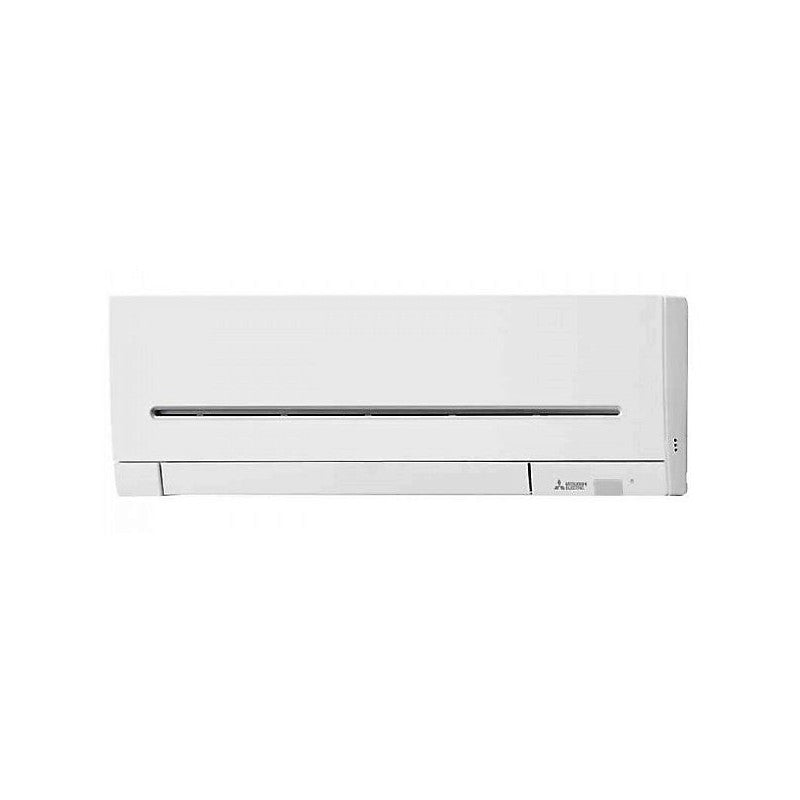

With a slimline profile of just 250mm in height, the indoor unit is ideal for tight spaces and can be conveniently installed above doorways. Despite its compact size, it offers powerful and quiet operation, making it well-suited for residential applications where space and noise are key considerations.
Advanced features such as Dual Barrier Coating help reduce dust and grease build-up inside the unit, maintaining efficiency and cleaner airflow over time. The integrated Night Mode minimises operational noise and dims indicator lights for uninterrupted sleep. Optional Wi-Fi control (adapter required) allows you to manage your system remotely via a compatible smartphone app.
Key Features:
- Compact design – only 250mm high, ideal for tight installations
- Reverse cycle operation for year-round heating and cooling
- Quiet performance, perfect for bedrooms and home offices
- Night Mode for reduced noise and light disturbance
- Dual Barrier Coating for improved cleanliness and efficiency
- Optional Wi-Fi control (adapter required)
Specifications:
- Capacity: 2.0kW Cooling / 2.5kW Heating
- Indoor Type: Wall Mounted
- Power Supply: Single Phase
- Refrigerant: R32
| Indoor Unit | MSZ-AP20VGD-A1 | |||
| Outdoor Unit | MUZ-AP20 VG(D*5)-A1*4 | |||
| Refrigerant | R32 | |||
|
Cooling
|
Capacity [Rated]*1 | kW | 2 | |
| Capacity [Min-Max] | kW | 0.60 – 2.70 | ||
| Total Input [Rated]*1 | kW | 0.46 | ||
| Total Input [Min-Max] | kW | 0.23 – 1.16 | ||
| EER | 4.35 | |||
| AEER | 4.31 | |||
|
TCSPF (Residential)
|
Hot | 5.5 | ||
| Average | 5.15 | |||
| Cold | 5.29 | |||
|
ZERL (Residential) Star Rating*2
|
Hot | 3.5 | ||
| Average | 3.5 | |||
| Cold | 3.5 | |||
| Running Current [Rated]*3 | A | 2.6 | ||
|
Sound Pressure Level
|
In [Quiet-Lo-Mid- Hi-SHi] | dBA | 21 – 26 – 30 – 35 – 42 | |
| Out (PWL) | dBA | 47 (59) | ||
| Air Volume (In) [Quiet-SHi] | L/s | 58 – 115 | ||
|
Heating
|
Capacity [Rated]*1 | kW | 2.5 | |
| Capacity [Min-Max] | kW | 0.50 – 3.50 | ||
| Total Input [Rated]*1, 5 | kW | 0.6 | ||
| Total Input [Min-Max] | kW | 0.25 – 1.20 | ||
| COP | 4.17 | |||
| ACOP | 4.14 | |||
|
HSPF (Residential)
|
Hot | 4.61 | ||
| Average | 4.28 | |||
| Cold | 3.94 | |||
|
ZERL (Residential) Star Rating*2
|
Hot | 3 | ||
| Average | 2.5 | |||
| Cold | 2 | |||
| Running Current [Rated]*3 | A | 3.2 | ||
|
Sound Pressure Level
|
In [Quiet-Lo-Mid- Hi-SHi] | dBA | 21 – 26 – 30 – 35 – 42 | |
| Out (PWL) | dBA | 48 (61) | ||
| Air Volume (In) [Quiet-SHi] | L/s | 62 – 122 | ||
| Max. Running Current | A | 7.1 | ||
|
Indoor Unit
|
Input [Rated] (Cooling/Heating) | W | 19/19 | |
| Dimensions [HxWxD] | mm | 250 x 760 x 178 | ||
| Weight | kg | 8.2 | ||
|

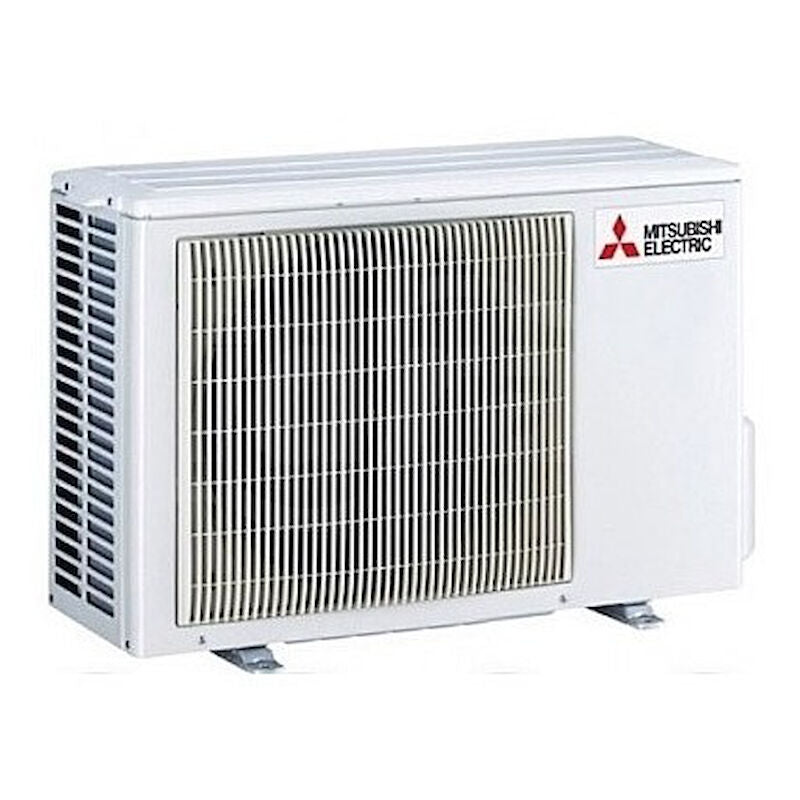

Outdoor Unit
|
Dimensions [HxWxD] | mm | 550 x 800 x 285 | |
| Weight | kg | 31 | ||
| Breaker Size | A | 10 | ||
|
Piping
|
Diameter [Liquid/Gas] | mm | ø6.35/ø9.52 | |
| Max. Length/Height | m | 20/12 | ||
|
Guaranteed Operating Range [Outdoor]
|
Cooling | °C | -10 ~ 46 | |
| Heating | °C | -15 ~ 24 | ||
| Refrigerant Amount [Pre-Charged] | kg | 0.55 | ||
