Mitsubishi Heavy Industries Ciara™ Series DXK12ZTLA-WFJ 3.5kW Split System
Mitsubishi Heavy Industries Ciara™ Series DXK12ZTLA-WFJ 3.5kW Split System is backordered and will ship as soon as it is back in stock.
Pickup available at HVACZone
Usually ready in 24 hours
Local Pickup Available
Local Pickup Available
We offer free local pickup from of Clyde North Store
Mitsubishi Heavy Industries Ciara™ Series DXK12ZTLA-WFJ 3.5kW Split...
Mitsubishi Heavy Industries Ciara™ Series DXK12ZTLA-WFJ 3.5kW Split System is backordered and will ship as soon as it is back in stock.
Description
Description

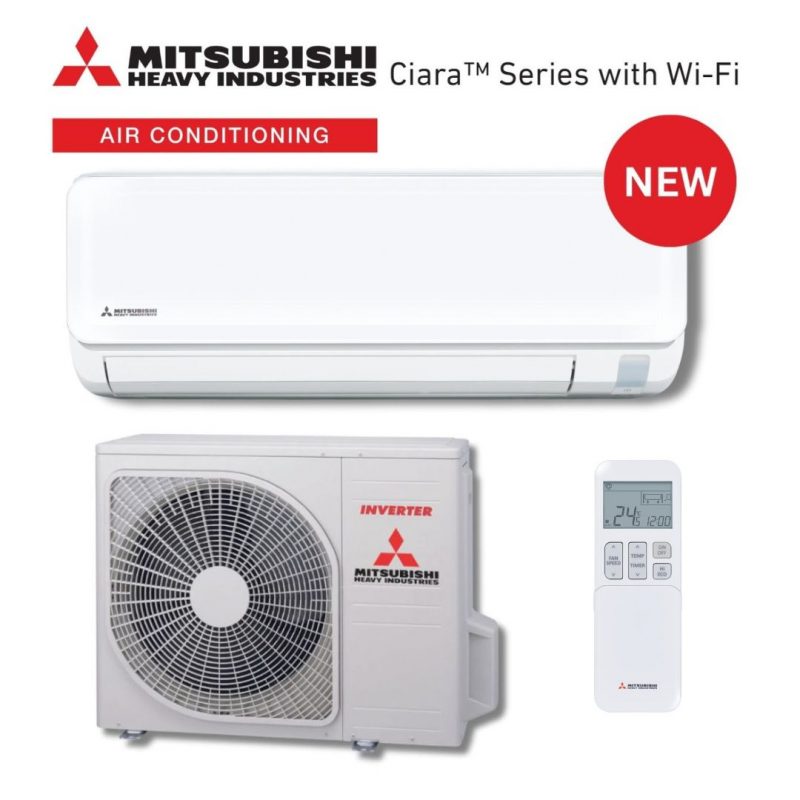

The Ciara™ DXK12ZTLA-WFJ 3.5kW Split System from Mitsubishi Heavy Industries combines elegant European-inspired design with advanced climate control, making it ideal for bedrooms, living areas, and small to medium spaces.
Designed with smooth rounded contours and a sleek, modern finish, the Ciara™ series integrates seamlessly into contemporary interiors while delivering reliable reverse cycle heating and cooling. Built-in Wi-Fi allows convenient control from your smartphone, while compatibility with Google Assistant and Amazon Alexa (devices sold separately) provides added hands-free convenience.
The system is engineered for both comfort and air quality, featuring Clean Air Technology to help reduce airborne particles such as allergens, odours, bacteria, and other contaminants. Quiet operation, including two outdoor silent modes, ensures minimal disruption—perfect for residential environments.
Key Features:
- Built-in Wi-Fi for remote control via smartphone
- Voice control compatibility with Google Assistant and Amazon Alexa
- Compact, modern design with elegant finish
- Clean Air Technology to assist in reducing airborne contaminants
- Quiet operation with dual outdoor silent modes
- Easy-to-use remote with backlit display
Specifications:
- Power Supply: Single Phase
- Capacity: 3.5kW Cooling / 3.8kW Heating
- Type: Reverse Cycle
- Indoor Type: Wall Mounted
- Refrigerant: R32
| CAPACITY | 3.3kW | |||
| Indoor | DXK12ZTLA-WF | |||
| Outdoor | DXC12ZTLA-W | |||
| Power Source (Outdoor Unit) | 1 Phase, 220 – 240V, 50Hz | |||
|
*Operation Data
|
Nominal Capacity (Range)
|
Cooling T1 |
kW
|
3.3 (0.8~3.7) |
| Heating H1 | 3.8 (1.0~4.9) | |||
| Heating H2 | 3.9 | |||
|
Power Consumption
|
Cooling T1 | 0.90 (0.19~1.30) | ||
| Heating H1 | 0.90 (0.21~1.50) | |||
| Maximum Power Consumption | 1.65 | |||
|
Running Current
|
Cooling T1 |
A
|
4.1 | |
| Heating H1 | 4.1 | |||
| Inrush Current, Maximum Current | 4.9, 9.0 | |||
| EER | Cooling T1 |
|
3.67 | |
| COP | Heating H1 | 4.22 | ||
| Sound Power Level (JIS C9612) | Outdoor |
dB(A)
|
61 | |
|
Sound Pressure Level (JIS C9612)
|
Indoor | 45-37-27-22 | ||
| Outdoor | 50 | |||
|
Energy Label (GEMS 2019)
|
Hot
|
Cooling | -4 | |
| Heating | -3.5 | |||
|
Average
|
Cooling | -3 | ||
| Heating | -3 | |||
|
Cold
|
Cooling | -3 | ||
| Heating | -2.5 | |||
|
External dimensions (HXWXD)
|
Indoor |
mm
|
294x798x210 | |
| Outdoor | 540×645(+57)x275 | |||
|
Net weight
|
Indoor |
kg
|
9 | |
| Outdoor | 24 | |||
|
Airflow
|
Cooling (Indoor) |
l/s
|
187-142-90-73 | |
| Heating (Indoor) | 197-163-113-83 | |||
|
Installation Data
|
Refrigerant (Type, Amount, Pre-charge Length)
|
Quantity | kg | (R32) 0.59 |
| Pre-Charged to Pipe | m | 10 | ||
|
Refrigerant Piping
|
Liquid line |
mm
|
Ø6.35 | |
| Gas line | Ø9.52 | |||
| Connection Method | Flare connection | |||
| Maximum Pipe Length (One Way) |
m
|
20 | ||
| Max Vertical Height Diff. Between O.U. and I.U. | 15 ( O.U. above I.U. ) / 15 ( O.U. below I.U. ) | |||
| Standard accessories | Allergen Clear Filter x 1, Wi-Fi | |||
| Optional parts | Interface kit (SC-BIKN2-E) / Photocatalytic Washable Deodorizing Filter | |||
| Demand Response (AS4755) | No | |||
