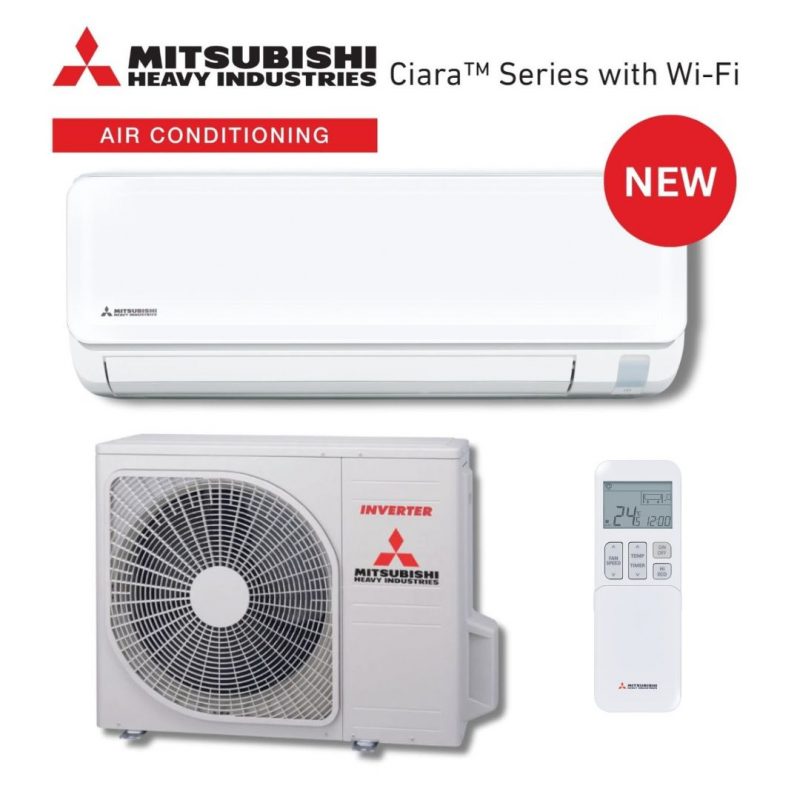

Mitsubishi Heavy Industries Ciara™ Series DXK09ZTLA-WFJ 2.5kW Split System
Mitsubishi Heavy Industries Ciara™ Series DXK09ZTLA-WFJ 2.5kW Split System is backordered and will ship as soon as it is back in stock.
Pickup available at HVACZone
Usually ready in 24 hours
Local Pickup Available
Local Pickup Available
We offer free local pickup from of Clyde North Store
Mitsubishi Heavy Industries Ciara™ Series DXK09ZTLA-WFJ 2.5kW Split...
Mitsubishi Heavy Industries Ciara™ Series DXK09ZTLA-WFJ 2.5kW Split System is backordered and will ship as soon as it is back in stock.
Description
Description
The Ciara™ DXK09ZTLA-WFJ 2.5kW Split System from Mitsubishi Heavy Industries blends sophisticated European-inspired design with reliable climate control, making it an excellent choice for bedrooms, home offices, and small to medium living areas.
With its sleek, compact form and smooth rounded contours, the Ciara™ series complements modern interiors while delivering efficient reverse cycle heating and cooling. Built-in Wi-Fi enables convenient remote control via your smartphone, and compatibility with Google Assistant and Amazon Alexa (devices sold separately) allows for easy voice control.
Designed for comfort and improved indoor air quality, the system features advanced Clean Air Technology to help reduce airborne particles such as allergens, odours, and bacteria. Quiet operation, including dual outdoor silent modes, ensures minimal noise—ideal for residential environments.
Key Features:
- Built-in Wi-Fi for remote control via smartphone
- Voice control compatibility with Google Assistant and Amazon Alexa
- Compact, modern design with elegant finish
- Clean Air Technology to assist in reducing airborne contaminants
- Quiet operation with two outdoor silent modes
- Easy-to-use remote control with backlit display
Specifications:
- Power Supply: Single Phase
- Capacity: 2.5kW Cooling / 3.0kW Heating
- Type: Reverse Cycle
- Indoor Type: Wall Mounted
- Refrigerant: R32
| CAPACITY | 2.5kW | |||
| Indoor | DXK09ZTLA-WF | |||
| Outdoor | DXC09ZTLA-W | |||
| Power Source (Outdoor Unit) |
1 Phase, 220 – 240V, 50Hz
|
|||
|
*Operation Data
|
Nominal Capacity (Range)
|
Cooling T1 |
kW
|
2.5 (0.8~3.2) |
| Heating H1 | 3.0 (1.0~4.8) | |||
| Heating H2 | 3.8 | |||
|
Power Consumption
|
Cooling T1 | 0.58 (0.19~0.95) | ||
| Heating H1 | 0.66 (0.21~1.48) | |||
| Maximum Power Consumption | 1.65 | |||
|
Running Current
|
Cooling T1 |
A
|
3.1 | |
| Heating H1 | 3.5 | |||
| Inrush Current, Maximum Current | 3.6, 9.0 | |||
| EER | Cooling T1 |
|
4.31 | |
| COP | Heating H1 | 4.55 | ||
| Sound Power Level (JIS C9612) | Outdoor |
dB(A)
|
58 | |
|
Sound Pressure Level (JIS C9612)
|
Indoor | 41-36-26-22 | ||
| Outdoor | 47 | |||
|
Energy Label (GEMS 2019)
|
Hot
|
Cooling | -3.5 | |
| Heating | -3.5 | |||
|
Average
|
Cooling | -2.5 | ||
| Heating | -3 | |||
|
Cold
|
Cooling | -2.5 | ||
| Heating | -2.5 | |||
|
External dimensions (HXWXD)
|
Indoor |
mm
|
294x798x210 | |
| Outdoor | 540×645(+57)x275 | |||
|
Net weight
|
Indoor |
kg
|
9 | |
| Outdoor | 24 | |||
|
Airflow
|
Cooling (Indoor) |
l/s
|
167-133-88-73 | |
| Heating (Indoor) | 183-157-108-83 | |||
|
Installation Data
|
Refrigerant (Type, Amount, Pre-charge Length)
|
Quantity | kg | (R32) 0.59 |
| Pre-Charged to Pipe | m | 10 | ||
|
Refrigerant Piping
|
Liquid line |
mm
|
Ø6.35 | |
| Gas line | Ø9.52 | |||
| Connection Method | Flare connection | |||
| Maximum Pipe Length (One Way) |
m
|
20 | ||
| Max Vertical Height Diff. Between O.U. and I.U. | 15 ( O.U. above I.U. ) / 15 ( O.U. below I.U. ) | |||
| Standard accessories | Allergen Clear Filter x 1, Wi-Fi | |||
| Optional parts |
Interface kit (SC-BIKN2-E) / Photocatalytic Washable Deodorizing Filter
|
|||
