Description

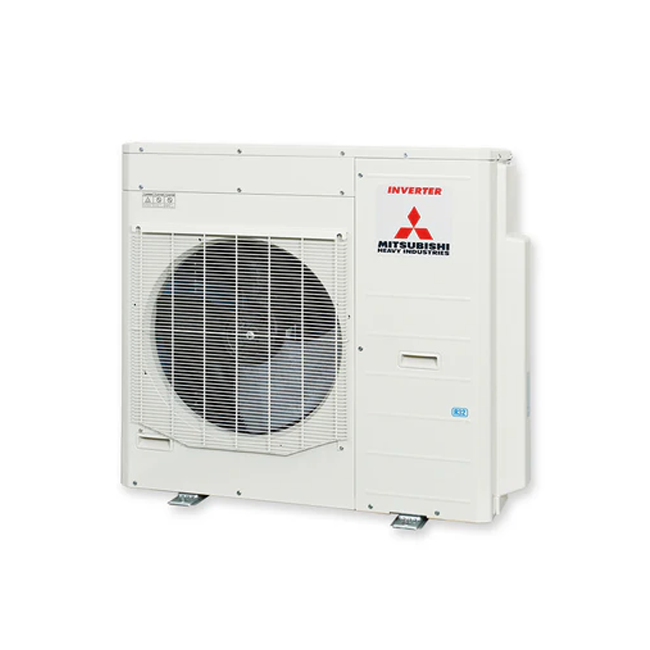

Mitsubishi Heavy Industries SCM100ZS-W 10.0kW Outdoor Multi Unit

With the ability to connect 5 indoor units to a single outdoor unit, the SCM100ZS-W outdoor multi-split system offers a compact and versatile solution for cooling and heating multiple rooms. Thanks to improved component design, the SCM-ZS-W series boasts super quiet operation while also delivering high energy efferences. The ability to control each indoor unit independently offers even further energy savings while also providing complete control.

Key features

  • Individual control over each room
  • Energy efficient solution for multiple rooms
  • Wide range of indoor units to suit any space
  • Super quiet operation
Outdoor SCM100ZS-W
Power source (Outdoor) 1 Phase 240V 50Hz


















*Operation data





Nominal Capacity (Range)

 Cooling T1





kW

 10.0 (1.7~11.5)
Heating H1 10.5 (0.9~11.5)




Power consumption

 Cooling T1 2.70
Heating H1 2.38




Running current

 Cooling T1



A

 11.4
Heating H1 10.0
Inrush current, maximum current 5, 21
EER Cooling T1 3.70
COP Heating H1 4.41




Sound power level (JIS C9612)

 Cooling T1







dB(A)

 67
Heating H1 72




Sound pressure level (JIS C9612)

 Cooling T1 54
Heating H1 59




Silent mode

 Cooling T1 49
Heating H1 50
External dimensions (HxWxD) mm 945 x 970 x 370
Net weight



kg

 73




Refrigerant (R32)

 Quantity 2.98
Pre charged to pipe length m 40








Installation data





Refrigerant piping

 Liquid line



mm

 Ø6.35 x 5
Gas line Ø9.52 x 5
Connection method Flare connection
Maximum pipe length to one indoor unit



m

 25
Total pipe length to all indoor units 75
Max vertical height diff. between O.U. and I.U. 20 ( O.U. above I.U.) / 20 ( O.U. below I.U. )










Indoor Unit Combination

 SRK-ZSA-W









kW

 2.0, 2.5, 3.5, 5.0
SRK-ZSXA-W 2.0, 2.5, 3.5, 5.0, 6.0
SRK-ZRA-W 7.1, 8.0
SRF-ZS(X)-W 2.5, 3.5, 5.0
SRR-ZS-W 2.5, 3.5, 5.0, 6.0
FDTC-VH 2.5, 3.5, 5.0, 6.0
FDUM-VH 5.0
Indoor Unit Connection **3 to 5 Units
Indoor Connection Capacity kW 9.0 to 16.0




Outdoor air temperature (upper, lower limits)

 Cooling °C -15 to 46
Heating -15 to 24
