Description
Description

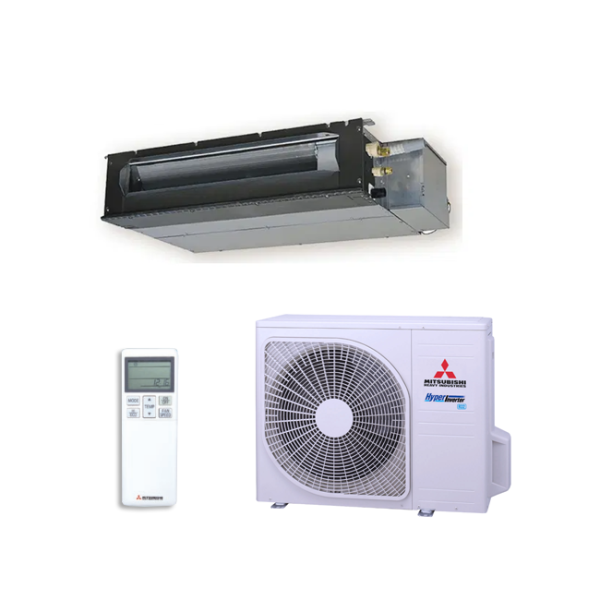

The Akari® SRR60ZS 5.6kW Bulkhead Air Conditioner from Mitsubishi Heavy Industries is designed for seamless installation within your ceiling, making it ideal for apartments or rooms with limited ceiling height. Its slim, low-profile design at just 200mm allows for discreet placement while providing effective air distribution through integrated grilles.
Perfect for bedrooms and quiet areas, the Akari® series delivers super quiet operation without compromising on performance. It includes a high power mode for rapid heating and cooling and a dry operation mode to reduce indoor humidity. The built-in drain pump simplifies installation, and a wide range of timer and scheduling functions provides convenient, automated control.
Key Features:
- Slim, low-profile design for compact ceiling spaces
- Super quiet operation, ideal for bedrooms
- High power mode for rapid heating and cooling
- Dry operation for dehumidification
- Built-in drain pump for easy installation
- Wide range of timer and scheduling functions
Specifications:
- Power Supply: Single Phase
- Capacity: 5.6kW Cooling/6.7kW Heating
- Available in: Reverse Cycle
| CAPACITY | 5.6kW | |||
| Indoor | SRR60ZS-W | |||
| Outdoor | SRC60ZSXA-W | |||
| Power Source (Outdoor Unit) | 1 Phase 240V 50Hz | |||
|
*Opera- tion Data
|
Nominal Capacity (Range)
|
Cooling T1 |
kW
|
5.6 (1.2-6.5) |
| Heating H1 | 6.7 (1.0 -8.6) | |||
| Heating H2 | 6.8 | |||
|
Power Consumption
|
Cooling T1 | 1.70 (0.22-2.57) | ||
| Heating H1 | 1.89 (0.2-2.89) | |||
| Maximum Power Consumption | 2.9 | |||
|
Running Current
|
Cooling T1 |
A
|
7.2 | |
| Heating H1 | 8 | |||
| Inrush Current, Maximum Current | 5.0, 15.0 | |||
| EER | Cooling T1 |
|
3.29 | |
| COP | Heating H1 | 3.54 | ||
| Sound Power Level (JIS C9612) | Outdoor |
dB(A)
|
65 | |
|
Sound Pressure Level (JIS C9612)
|
Indoor | 44-38-35-30 | ||
| Outdoor | 52 | |||
|
Energy Label (GEMS 2019)
|
Hot
|
Cooling | -3 | |
| Heating | -3 | |||
|
Aver- age
|
Cooling | -2.5 | ||
| Heating | -2.5 | |||
|
Cold
|
Cooling | -3 | ||
| Heating | -2 | |||
|
External dimensions (HXWXD)
|
Indoor |
mm
|
200×950(+120)x500 | |
| Outdoor | 640×800(+71)x290 | |||
|
Net weight
|
Indoor |
kg
|
24 | |
| Outdoor | 45 | |||
|
Airflow
|
Cooling (Indoor) |
l/s
|
242-192-175-133 | |
| Heating (Indoor) | 250-217-192-150 | |||
|
Installa- tion Data
|
Refrigerant (Type, Amount, Pre- charge Length)
|
Quantity | kg | (R32) 1.3 |
| Pre-Charged to Pipe |
m | 15 | ||
|
Refrigerant Piping
|
Liquid line |
mm
|
Ø6.35 | |
| Gas line | Ø12.7 | |||
| Connection Method | Flare connection | |||
| Maximum Pipe Length (One Way) |
m
|
30 | ||
| Max Vertical Height Diff. Between O.U. and I.U. | 20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. ) | |||
| Standard accessories | Polypropylene net x1 | |||
| Optional parts | Interface kit (SC-BIKN2-E) / Wi-Fi Kit | |||
| Demand Response (AS4755) | Yes | |||
