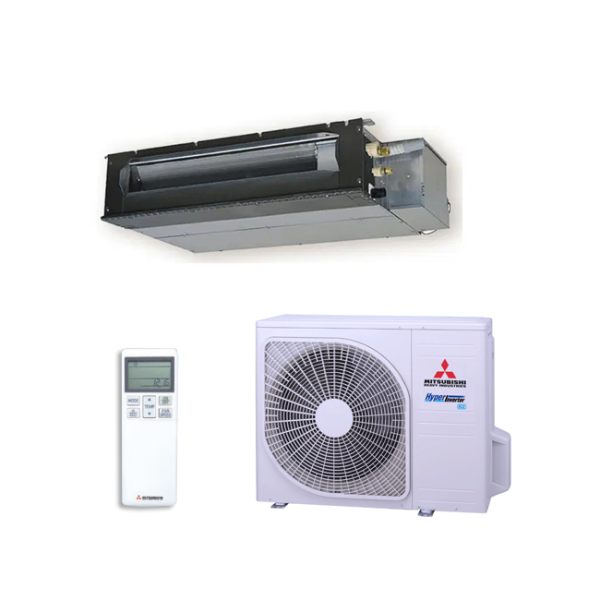

Mitsubishi Heavy Industries Akari SRR50ZS 5.0kW Bulkhead Air Conditioner
Mitsubishi Heavy Industries Akari SRR50ZS 5.0kW Bulkhead Air Conditioner is backordered and will ship as soon as it is back in stock.
Pickup available at HVACZone
Usually ready in 24 hours
Local Pickup Available
Local Pickup Available
We offer free local pickup from of Clyde North Store
Mitsubishi Heavy Industries Akari SRR50ZS 5.0kW Bulkhead Air Condit...
Mitsubishi Heavy Industries Akari SRR50ZS 5.0kW Bulkhead Air Conditioner is backordered and will ship as soon as it is back in stock.
Description
Description
The Akari® SRR50ZS 5.0kW Bulkhead Air Conditioner from Mitsubishi Heavy Industries is designed for seamless ceiling installation, making it perfect for apartments or rooms with limited ceiling height. Its slim, low-profile design at just 200mm ensures it fits discreetly while efficiently distributing air via integrated grilles.
Ideal for bedrooms and quiet areas, the Akari® series provides super quiet operation without compromising performance. It features a high power mode for rapid heating and cooling and a dry operation mode to reduce humidity. The built-in drain pump allows for easier installation, while the wide range of timer and scheduling functions provides convenient, automated control.
Key Features:
- Slim, low-profile design for compact ceiling spaces
- Super quiet operation, ideal for bedrooms
- High power mode for rapid heating and cooling
- Dry operation for dehumidification
- Built-in drain pump for flexible installation
- Wide range of timer and scheduling functions
Specifications:
- Power Supply: Single Phase
- Capacity: 5.0kW Cooling / 5.4kW Heating
- Available in: Reverse Cycle
| CAPACITY | 5.0kW | |||
| Indoor | SRR50ZS-W | |||
| Outdoor | SRC50ZSXA-W | |||
| Power Source (Outdoor Unit) | 1 Phase 240V 50Hz | |||
|
*Opera- tion Data
|
Nominal Capacity (Range)
|
Cooling T1 |
kW
|
5.0 (1.2-6.0) |
| Heating H1 | 5.4 (1.0-8.2) | |||
| Heating H2 | 6 | |||
|
Power Consumption
|
Cooling T1 | 1.42 (0.22-2.02) | ||
| Heating H1 | 1.39 (0.2-2.86) | |||
| Maximum Power Consumption | 2.9 | |||
|
Running Current
|
Cooling T1 |
A
|
6 | |
| Heating H1 | 5.9 | |||
| Inrush Current, Maximum Current | 5.0, 15.0 | |||
| EER | Cooling T1 |
|
3.52 | |
| COP | Heating H1 | 3.88 | ||
| Sound Power Level (JIS C9612) | Outdoor |
dB(A)
|
63 | |
|
Sound Pressure Level (JIS C9612)
|
Indoor | 41-37-34-29 | ||
| Outdoor | 51 | |||
|
Energy Label (GEMS 2019)
|
Hot
|
Cooling | -3 | |
| Heating | -3.5 | |||
|
Aver- age
|
Cooling | -3 | ||
| Heating | -2.5 | |||
|
Cold
|
Cooling | -3 | ||
| Heating | -2 | |||
|
External dimensions (HXWXD)
|
Indoor |
mm
|
200×950(+120)x500 | |
| Outdoor | 640×800(+71)x290 | |||
|
Net weight
|
Indoor |
kg
|
24 | |
| Outdoor | 45 | |||
|
Airflow
|
Cooling (Indoor) |
l/s
|
225-183-167-125 | |
| Heating (Indoor) | 233-208-183-142 | |||
|
Installa- tion Data
|
Refrigerant (Type, Amount, Pre- charge Length)
|
Quantity | kg | (R32) 1.3 |
| Pre-Charged to Pipe |
m | 15 | ||
|
Refrigerant Piping
|
Liquid line |
mm
|
Ø6.35 | |
| Gas line | Ø12.7 | |||
| Connection Method | Flare connection | |||
| Maximum Pipe Length (One Way) |
m
|
30 | ||
| Max Vertical Height Diff. Between O.U. and I.U. | 20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. ) | |||
| Standard accessories | Polypropylene net x1 | |||
| Optional parts | Interface kit (SC-BIKN2-E) / Wi-Fi Kit | |||
| Demand Response (AS4755) | Yes | |||
