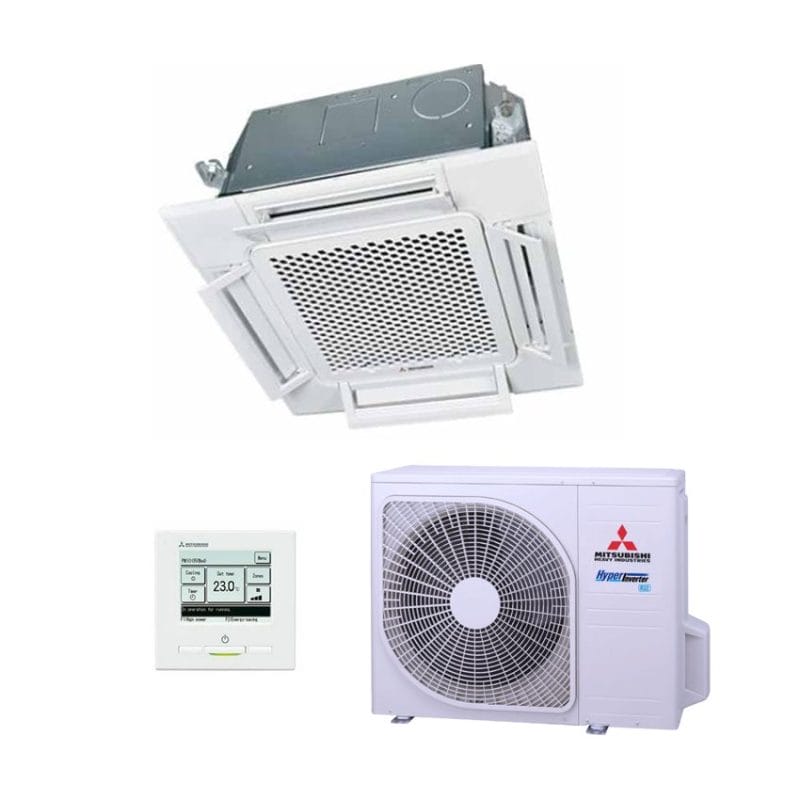

Mitsubishi Heavy Industries FDTC50VH 5.0kW Compact Ceiling Cassette (FDTC Series)

SKU: 1196

$2,542.00

Tax included Shipping calculated at checkout.

Fascia

Honeycomb Grid

Pickup available at HVACZone

Usually ready in 24 hours

Local Pickup Available

We offer free local pickup from of Clyde North Store

Description

The FDTC50VH 5.0kW Compact Ceiling Cassette from Mitsubishi Heavy Industries offers an efficient and versatile solution for commercial spaces requiring high performance in a compact design. With a height of only 258mm, it is one of the most space-saving ceiling cassettes on the market, allowing installation in areas with limited roof clearance.

Equipped with Draught Control Technology, the FDTC series ensures consistent, comfortable airflow while preventing cold drafts. Optional motion sensor technology optimises energy use by detecting room occupancy and switching to energy-saving mode during periods of low activity. The unit also features a built-in 600mm drain pump for flexible installation and is compatible with fascia panels in honeycomb or grid design, offering both functional and aesthetic options.

Key Features:

Compact design for minimal ceiling space
Draught Control Technology for efficient airflow and comfort
Optional motion sensor for energy-saving operation
Various timer functions for convenient scheduling
Built-in 600mm drain pump for flexible installation

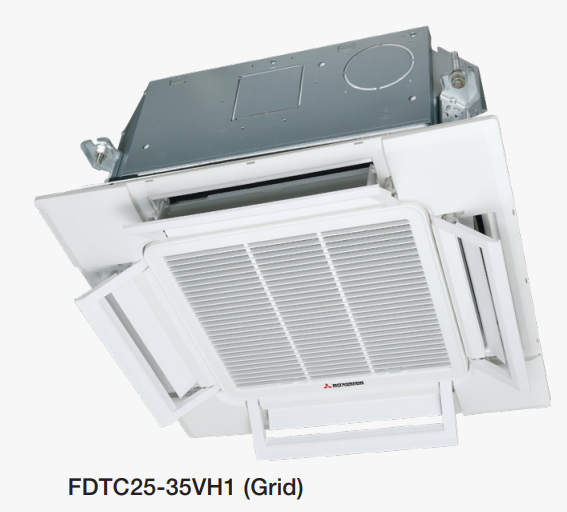

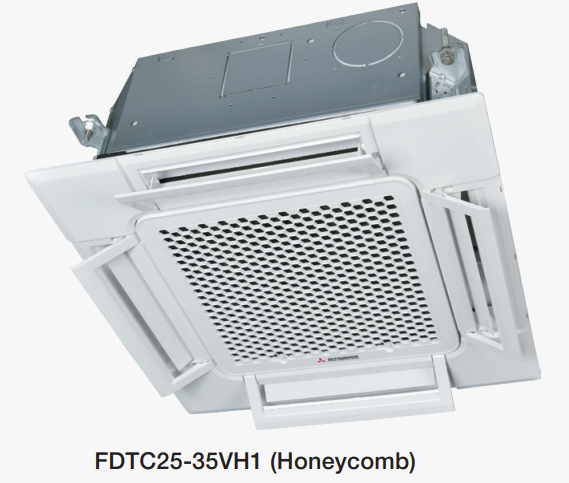

Fascia panels available in honeycomb and grid designs

Specifications:

Power Supply: Single Phase
Capacity: 5.0kW Cooling / 5.0kW Heating
Available in: Reverse Cycle

CAPACITY				5.0kW
Set				FDTC50ZSXAWVH
Indoor				FDTC50VH
Outdoor				SRC50ZSXA-W
Power Source (Outdoor Unit)				1 Phase 240V 50Hz
*Operation Data	Nominal Capacity (Range)	Cooling T1	kW	5.0 (1.1 -5.6)
		Heating H1		5.4 (0.6-6.3)
		Heating H2		4.8
	Power Consumption	Cooling T1		1.4
		Heating H1		1.53
	Maximum Power Consumption			2.9
	Running Current	Cooling T1	A	6.2
		Heating H1		6.7
	Inrush Current, Maximum Current			5, 15
	EER	Cooling T1		3.58
	COP	Heating H1		3.53
	Sound Power Level (JIS C9612)	Outdoor	dB(A)	63
	Sound Pressure Level (JIS C9612)	Indoor		P-Hi:44 Hi:40 Me:35 Lo:27
		Outdoor		52
External dimensions (HXWXD)		Indoor	mm	248x570x570
		Panel		10X620X620 TC-PSAE-5AW-E (Honeycomb) / TC-PSAGE-5AW-E (Grid)
		Outdoor		640×800(+71)x290
Net weight		Indoor	kg	Unit 14 Panel 2.5
		Outdoor		45
Airflow		Cooling (Indoor)	l/s	P-Hi: 217 Hi: 183 Me: 150 Lo: 117
		Heating (Indoor)
Installation Data	Refrigerant (R32)	Quantity	kg	1.3
		Pre-Charged to Pipe	m	15
	Refrigerant Piping	Liquid Line	mm	Ø6.35
		Gas Line		Ø12.7
	Connection Method			Flare Connection
	Maximum Pipe Length (One Way)		m	30
	Max Vertical Height Diff. Between O.U. and I.U.			20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. )
Controller				RC-E5, RC-EXZ3A, RCH-E3 or RCN-TC-5AW-E2 / RCN-TC-5AW-E3 (Fine Snow)
Motion Sensor (Optional)				LB-TC-5W-E
Demand Response (AS4755)				Yes
Outdoor air temperature (upper, lower limits)		Cooling	oC	-15 to 46
		Heating		-20 to 20

• The data is measured under the following conditions(ISO-T1, H1). Cooling: Indoor temp. of 27°CDB, 19°CWB, and outdoor temp. of 35°CDB. Heating: Indoor temp. of 20°CDB, and outdoor temp. of 7°CDB, 6°CWB.
• Sound level the value in an anechoic chamber. During operation these values are somewhat higher due to ambient conditions.
