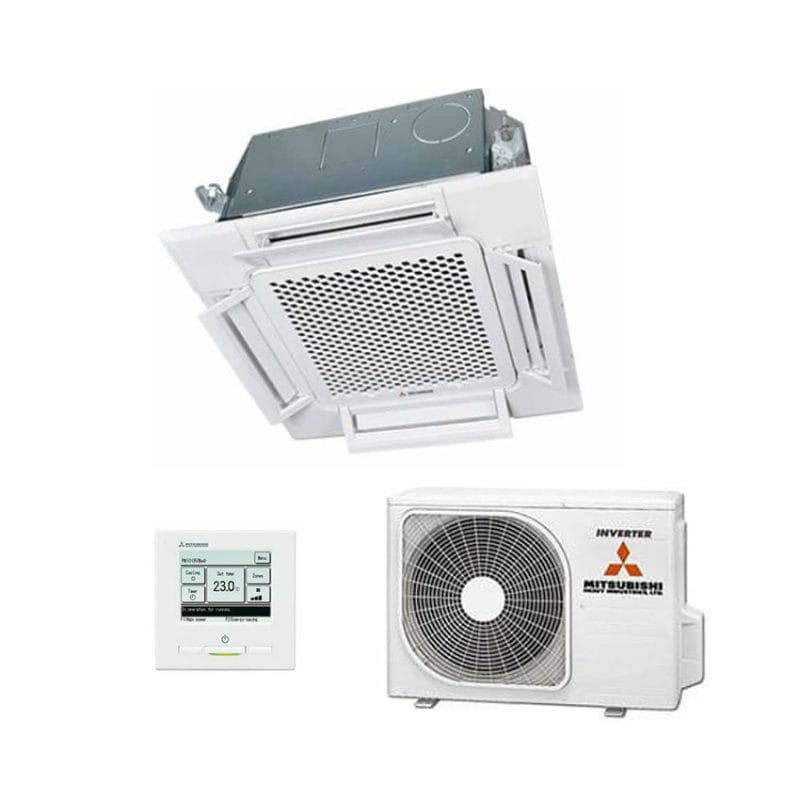

MHI FDTC35VH1 Four Way Compact Ceiling Cassette – 3.5kW Set (FDTC Series)
MHI FDTC35VH1 Four Way Compact Ceiling Cassette – 3.5kW Set (FDTC Series) - Honeycomb is backordered and will ship as soon as it is back in stock.
Pickup available at HVACZone
Usually ready in 24 hours
Local Pickup Available
Local Pickup Available
We offer free local pickup from of Clyde North Store
MHI FDTC35VH1 Four Way Compact Ceiling Cassette – 3.5kW Set (FDTC S...
MHI FDTC35VH1 Four Way Compact Ceiling Cassette – 3.5kW Set (FDTC Series) - Honeycomb is backordered and will ship as soon as it is back in stock.
Description
Description
The FDTC Series by Mitsubishi Heavy Industries combines compact design, quiet operation, and advanced Draught Control Technology (DCT) to provide an ideal solution for a variety of commercial spaces. With a slim profile of just 258mm, these ceiling cassettes fit easily in areas with limited ceiling height while delivering efficient, draft-free airflow.
An optional motion sensor increases energy efficiency by monitoring room activity and automatically switching to energy-saving mode during periods of low occupancy. Fascia panels are available in honeycomb or grid designs for seamless interior integration.
Key Features
- Compact Design: Slim 258mm profile for easy installation in tight ceiling spaces
- Draught Control Technology (DCT): Delivers efficient airflow while preventing drafts
- Optional Motion Sensor: Automatically adjusts operation to save energy
- Timer Functions: Flexible scheduling for comfort and convenience
- Built-in Drain Pump: 600mm lift for reliable condensate management
- Fascia Options: Honeycomb or grid panel design
Specifications
- Power Supply: Single Phase
- Capacity: 3.5kW Cooling | 4.5kW Heating
- Type: Reverse Cycle
- Installation: Ceiling-mounted cassette
Applications
Perfect for offices, retail stores, or small commercial spaces requiring efficient, quiet, and comfortable climate control with energy-saving features.
| CAPACITY | 3.5kW | |||
| Set | FDTC35ZSAWVH1 | |||
| Indoor | FDTC35VH1 | |||
| Outdoor | SRC35ZSA-W | |||
| Power Source (Outdoor Unit) | 1 Phase 240V 50Hz | |||
|
*Operation Data
|
Nominal Capacity (Range)
|
Cooling T1 |
kW
|
3.5 (0.9-4.3) |
| Heating H1 | 4.25 (0.9-4.6) | |||
| Heating H2 | 3.95 | |||
|
Power Consumption
|
Cooling T1 | 0.91 (0.18-1.37) | ||
| Heating H1 | 1.08 (0.19 -1.33) | |||
| Maximum Power Consumption | 1.65 | |||
|
Running Current
|
Cooling T1 |
A
|
4.1 | |
| Heating H1 | 4.8 | |||
| Inrush Current, Maximum Current | 4.8, 9 | |||
| EER | Cooling T1 | 3.85 | ||
| COP | Heating H1 | 3.94 | ||
| Sound Power Level (JIS C9612) | Outdoor |
dB(A)
|
62 | |
|
Sound Pressure Level (JIS C9612)
|
Indoor | P-Hi:39 Hi:36 Me:32 Lo:29 | ||
| Outdoor | 50 | |||
|
External dimensions (HXWXD)
|
Indoor |
mm
|
248x570x570 | |
| Panel | 10X620X620 TC-PSAE-5AW-E (Honeycomb) / TC-PSAGE-5AW-E (Grid) | |||
| Outdoor | 540×780(+62)x290 | |||
|
Net weight
|
Indoor |
kg
|
Unit 13.5 Panel 2.5 | |
| Outdoor | 34.5 | |||
|
Airflow
|
Cooling (Indoor) |
l/s
|
P-Hi: 150 Hi: 133 Me: 125 Lo: 108 | |
| Heating (Indoor) | P-Hi: 183 Hi: 150 Me: 133 Lo: 117 | |||
|
Installation Data
|
Refrigerant (R32)
|
Quantity | kg | 0.78 |
| Pre-Charged to Pipe | m | 15 | ||
|
Refrigerant Piping
|
Liquid Line |
mm
|
Ø6.35 | |
| Gas Line | Ø9.52 | |||
| Connection Method | Flare Connection | |||
| Maximum Pipe Length (One Way) |
m
|
20 | ||
| Max Vertical Height Diff. Between O.U. and I.U. | 10 ( O.U. above I.U. ) / 10 ( O.U. below I.U. ) | |||
| Controller | RC-E5, RC-EXZ3A, RCH-E3 or RCN-TC-5AW-E2 / RCN-TC-5AW-E3 (Fine Snow) | |||
| Motion Sensor (Optional) | LB-TC-5W-E | |||
| Demand Response (AS4755) | Yes | |||
|
Outdoor air temperature (upper, lower limits)
|
Cooling |
oC
|
-15 to 46 | |
| Heating | -15 to 24 | |||
