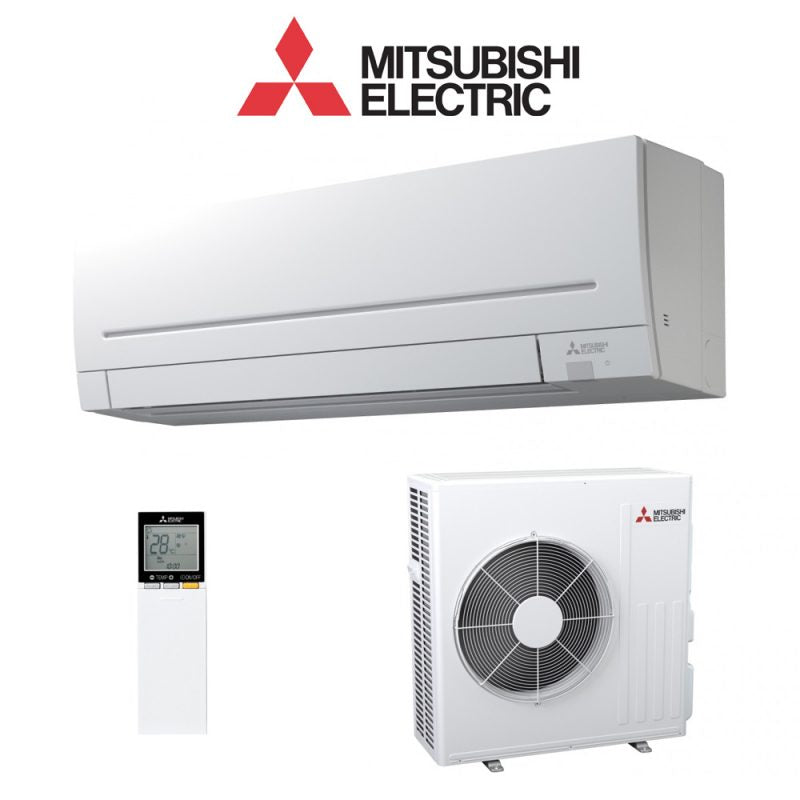

Mitsubishi Electric MSZ-AP71VGKD2 7.1kW Split System Air Conditioner (Wi-Fi)
Mitsubishi Electric MSZ-AP71VGKD2 7.1kW Split System Air Conditioner (Wi-Fi) is backordered and will ship as soon as it is back in stock.
Pickup available at HVACZone
Usually ready in 24 hours
Local Pickup Available
Local Pickup Available
We offer free local pickup from of Clyde North Store
Mitsubishi Electric MSZ-AP71VGKD2 7.1kW Split System Air Conditione...
Mitsubishi Electric MSZ-AP71VGKD2 7.1kW Split System Air Conditioner (Wi-Fi) is backordered and will ship as soon as it is back in stock.
Description
Description
The MSZ-AP71VGKD2 7.1kW Split System from Mitsubishi Electric is a powerful reverse cycle air conditioner designed for single rooms or compact homes. Delivering both cooling and heating, it ensures comfortable indoor temperatures all year round.
Featuring built-in Wi-Fi control, this unit allows you to adjust settings remotely from your smartphone or tablet. Dual Barrier Coating keeps the airflow cleaner by reducing dust, smoke, and grease buildup, enhancing efficiency and indoor air quality.
The system provides quiet operation, ideal for bedrooms and living spaces, along with vertical and horizontal vanes for even air distribution. The Night Mode reduces noise during sleep, and the weekly timer enables customised scheduling for convenience.
Key Features:
- Built-in Wi-Fi for remote control via smartphone or tablet
- Reverse cycle heating and cooling for year-round comfort
- Quiet operation suitable for bedrooms and living spaces
- Dual Barrier Coating for cleaner, more efficient airflow
- Night Mode for minimal disturbance during sleep
- Weekly timer for customised scheduling
- Vertical and horizontal vanes for even air distribution
Specifications:
- Capacity: 7.1kW Cooling / 8.0kW Heating
- Indoor Type: Wall Mounted
- Power Supply: Single Phase
- Refrigerant: R32
| Indoor Unit | MSZ-AP71VGKD2-A2 | |||
| Outdoor Unit | MUZ-AP71VG(D*4)2-A2 | |||
| Refrigerant | R32 | |||
|
Cooling
|
Capacity [Rated]*1 | kW | 7.1 | |
| Capacity [Min-Max] | kW | 2.00 – 8.70 | ||
| Total Input [Rated]*1 | kW | 2.01 | ||
| Total Input [Min-Max] | kW | 0.43 – 3.03 | ||
| EER | 3.53 | |||
| AEER | 3.53 | |||
|
TCSPF (Residential)
|
Hot | 5.04 | ||
| Average | 4.81 | |||
| Cold | 5.08 | |||
|
ZERL (Residential) Star Rating*2
|
Hot | 3.5 | ||
| Average | 3 | |||
| Cold | 3.5 | |||
| Running Current [Rated]*3 | A | 8.8 | ||
|
Sound Pressure Level
|
In [Quiet-Lo-Mid- Hi-SHi] | dBA | 30 – 37 – 41 – 45 – 49 | |
| Out (PWL) | dBA | 56 (69) | ||
| Air Volume (In) [Quiet-SHi] | L/s | 160 – 310 | ||
|
Heating
|
Capacity [Rated]*1 | kW | 8 | |
| Capacity [Min-Max] | kW | 2.20 – 9.90 | ||
| Total Input [Rated]*1 | kW | 2.09 | ||
| Total Input [Min-Max] | kW | 0.42 – 3.25 | ||
| COP | 3.83 | |||
| ACOP | 3.82 | |||
|
HSPF (Residential)
|
Hot | 4.76 | ||
| Average | 4.25 | |||
| Cold | 3.76 | |||
|
ZERL (Residential) Star Rating*2
|
Hot | 3 | ||
| Average | 2.5 | |||
| Cold | 2 | |||
| Running Current [Rated]*3 | A | 9.1 | ||
|
Sound Pressure Level
|
In [Quiet-Lo-Mid- Hi-SHi] | dBA | 30 – 37 – 41 – 45 – 51 | |
| Out (PWL) | dBA | 55 (69) | ||
| Air Volume (In) [Quiet-SHi] | L/s | 170 – 320 | ||
| Max. Running Current | A | 16.4 | ||
|
Indoor Unit
|
Input [Rated] (Cooling/Heating) | W | 42/45 | |
| Dimensions [HxWxD] | mm | 325 x 1100 x 257 | ||
| Weight | kg | 17 | ||
|
Outdoor Unit
|
Dimensions [HxWxD] | mm | 880 x 840 x 330 | |
| Weight | kg | 53 | ||
| Breaker Size | A | 20 | ||
|
Piping
|
Diameter [Liquid/Gas] | mm | ø6.35/ø12.70 | |
| Max. Length/Height | m | 30/15 | ||
|
Guaranteed Operating Range [Outdoor]
|
Cooling | °C | -10 ~ 46 | |
| Heating | °C | -15 ~ 24 | ||
| Refrigerant Amount [Pre-Charged] | kg | 1.5 | ||
