Description
Description

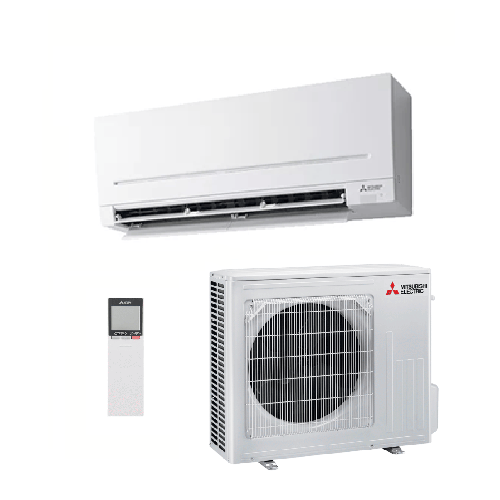

The MSZ-AP50VGKD2 5.0kW Split System from Mitsubishi Electric is a high-performance reverse cycle air conditioner, ideal for single rooms, bedrooms, and compact living spaces. It provides both cooling and heating, ensuring comfort throughout the year.
Equipped with built-in Wi-Fi control, this unit allows you to adjust your air conditioner remotely via smartphone or tablet, offering complete flexibility and convenience. Dual Barrier Coating keeps the airflow clean while improving efficiency by reducing dust, smoke, and grease buildup.
The system also features vertical and horizontal vanes for uniform air distribution, a Night Mode for quieter operation during sleep, and a weekly timer for tailored scheduling.
Key Features:
- Built-in Wi-Fi for remote control via smartphone or tablet
- Reverse cycle heating and cooling for year-round comfort
- Quiet operation, suitable for bedrooms and living areas
- Dual Barrier Coating for cleaner, more efficient airflow
- Night Mode to minimise noise and disturbance
- Weekly timer for convenient scheduling
- Vertical and horizontal vanes for even air distribution
Specifications:
- Capacity: 5.0kW Cooling / 6.0kW Heating
- Indoor Type: Wall Mounted
- Power Supply: Single Phase
- Refrigerant: R32
| Indoor Unit | MSZ-AP50VGKD2-A2 | |||
| Outdoor Unit | MUZ-AP50 VG(D*5)2-A2 | |||
| Refrigerant | R32 | |||
|
Cooling
|
Capacity [Rated]*1 | kW | 5 | |
| Capacity [Min-Max] | kW | 1.40 – 6.20 | ||
| Total Input [Rated]*1 | kW | 1.32 | ||
| Total Input [Min-Max] | kW | 0.30 – 2.23 | ||
| EER | 3.79 | |||
| AEER | 3.78 | |||
|
TCSPF (Residential)
|
Hot | 6.05 | ||
| Average | 5.69 | |||
| Cold | 6.1 | |||
|
ZERL (Residential) Star Rating*2
|
Hot | 4.5 | ||
| Average | 4 | |||
| Cold | 4.5 | |||
| Running Current [Rated]*3 | A | 5.9 | ||
|
Sound Pressure Level
|
In [Quiet-Lo-Mid- Hi-SHi] | dBA | 28 – 33 – 39 – 44 – 49 | |
| Out (PWL) | dBA | 54 (69) | ||
| Air Volume (In) [Quiet-SHi] | L/s | 100 – 258 | ||
|
Heating
|
Capacity [Rated]*1 | kW | 6 | |
| Capacity [Min-Max] | kW | 1.40 – 8.00 | ||
| Total Input [Rated]*1, 5 | kW | 1.62 | ||
| Total Input [Min-Max] | kW | 0.30 – 3.00 | ||
| COP | 3.7 | |||
| ACOP | 3.7 | |||
|
HSPF (Residential)
|
Hot | 5.35 | ||
| Average | 4.38 | |||
| Cold | 3.9 | |||
|
ZERL (Residential) Star Rating*2
|
Hot | 3.5 | ||
| Average | 2.5 | |||
| Cold | 2 | |||
| Running Current [Rated]*3 | A | 7.1 | ||
|
Sound Pressure Level
|
In [Quiet-Lo-Mid- Hi-SHi] | dBA | 28 – 33 – 38 – 43 – 48 | |
| Out (PWL) | dBA | 56 (69) | ||
| Air Volume (In) [Quiet-SHi] | L/s | 93 – 268 | ||
| Max. Running Current | A | 13.9 | ||
|
Indoor Unit
|
Input [Rated] (Cooling/Heating) | W | 43/43 | |
| Dimensions [HxWxD] | mm | 299 x 798 x 219 | ||
| Weight | kg | 10.5 | ||
|
Outdoor Unit
|
Dimensions [HxWxD] | mm | 714 x 800 x 285 | |
| Weight | kg | 40.0(VG)/41.0(VGD) | ||
| Breaker Size | A | 16 | ||
|
Piping
|
Diameter [Liquid/Gas] | mm | ø6.35/ø12.70 | |
| Max. Length/Height | m | 20/12 | ||
|
Guaranteed Operating Range [Outdoor]
|
Cooling | °C | -10 ~ 46 | |
| Heating | °C | -15 ~ 24 | ||
| Refrigerant Amount [Pre-Charged] | kg | 1 | ||
