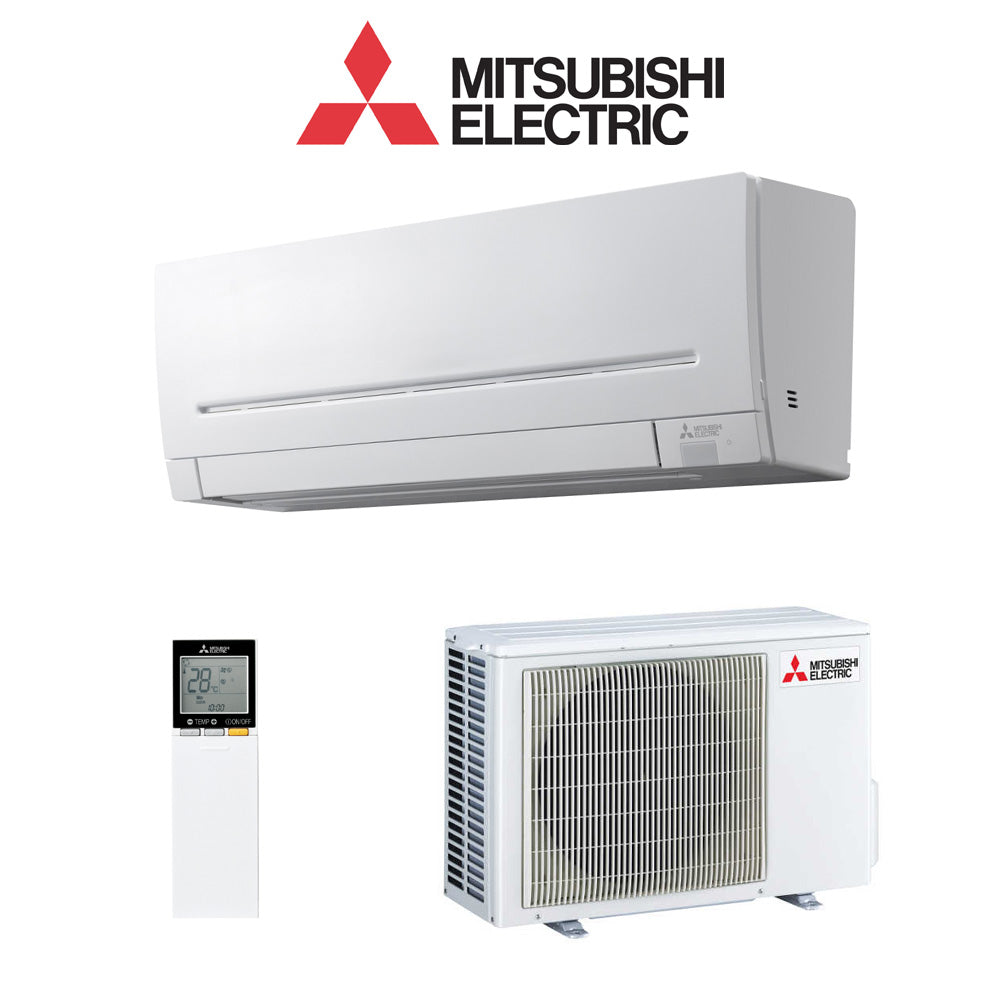

Mitsubishi Electric MSZ-AP35VGKD2 3.5kW Split System Air Conditioner (Wi-Fi)
Mitsubishi Electric MSZ-AP35VGKD2 3.5kW Split System Air Conditioner (Wi-Fi) is backordered and will ship as soon as it is back in stock.
Pickup available at HVACZone
Usually ready in 24 hours
Local Pickup Available
Local Pickup Available
We offer free local pickup from of Clyde North Store
Mitsubishi Electric MSZ-AP35VGKD2 3.5kW Split System Air Conditione...
Mitsubishi Electric MSZ-AP35VGKD2 3.5kW Split System Air Conditioner (Wi-Fi) is backordered and will ship as soon as it is back in stock.
Description
Description
The MSZ-AP35VGKD2 3.5kW Split System from Mitsubishi Electric is a versatile reverse cycle air conditioner designed for single rooms, bedrooms, and compact living spaces. Delivering both cooling and heating, it ensures year-round comfort with quiet and efficient performance.
Equipped with built-in Wi-Fi control, this unit allows for remote operation via a smartphone app, giving you complete control over your indoor climate wherever you are. Dual Barrier Coating helps maintain cleaner airflow and improves unit efficiency by reducing dust and grease buildup.
The MSZ-AP35VGKD2 also features vertical and horizontal vanes for even air distribution, a Night Mode for reduced noise and light disturbance, and a weekly timer for convenient scheduling to match your lifestyle.
Key Features:
- Built-in Wi-Fi control for remote operation
- Reverse cycle heating and cooling for year-round comfort
- Quiet operation suitable for bedrooms and living areas
- Dual Barrier Coating for cleaner, more efficient airflow
- Night Mode to minimise noise and light disturbance
- Weekly timer for flexible scheduling
- Vertical and horizontal vanes for optimal air distribution
Specifications:
- Capacity: 3.5kW Cooling / 3.7kW Heating
- Indoor Type: Wall Mounted
- Power Supply: Single Phase
- Refrigerant: R32
| Indoor Unit | MSZ-AP35VGKD2-A2 | |||
| Outdoor Unit | MUZ-AP35 VG(D*5)2-A2 | |||
| Refrigerant | R32 | |||
|
Cooling
|
Capacity [Rated]*1 | kW | 3.5 | |
| Capacity [Min-Max] | kW | 1.10 – 4.10 | ||
| Total Input [Rated]*1 | kW | 0.87 | ||
| Total Input [Min-Max] | kW | 0.21 – 1.18 | ||
| EER | 4.02 | |||
| AEER | 4.01 | |||
|
TCSPF (Residential)
|
Hot | 6.61 | ||
| Average | 6.14 | |||
| Cold | 6.6 | |||
|
ZERL (Residential) Star Rating*2
|
Hot | 5 | ||
| Average | 4.5 | |||
| Cold | 5 | |||
| Running Current [Rated]*3 | A | 4.1 | ||
|
Sound Pressure Level
|
In [Quiet-Lo-Mid- Hi-SHi] | dBA | 19 – 24 – 31 – 38 – 45 | |
| Out (PWL) | dBA | 50 (64) | ||
| Air Volume (In) [Quiet-SHi] | L/s | 82 – 223 | ||
|
Heating
|
Capacity [Rated]*1 | kW | 3.7 | |
| Capacity [Min-Max] | kW | 1.30 – 5.10 | ||
| Total Input [Rated]*1, 5 | kW | 0.82 | ||
| Total Input [Min-Max] | kW | 0.35 – 1.42 | ||
| COP | 4.51 | |||
| ACOP | 4.49 | |||
|
HSPF (Residential)
|
Hot | 5.65 | ||
| Average | 5.01 | |||
| Cold | 4.51 | |||
|
ZERL (Residential) Star Rating*2
|
Hot | 4 | ||
| Average | 3.5 | |||
| Cold | 3 | |||
| Running Current [Rated]*3 | A | 3.8 | ||
|
Sound Pressure Level
|
In [Quiet-Lo-Mid- Hi-SHi] | dBA | 19 – 25 – 31 – 38 – 45 | |
| Out (PWL) | dBA | 50 (64) | ||
| Air Volume (In) [Quiet-SHi] | L/s | 82 – 215 | ||
| Max. Running Current | A | 7.1 | ||
|
Indoor Unit
|
Input [Rated] (Cooling/Heating) | W | 29/26 | |
| Dimensions [HxWxD] | mm | 299 x 798 x 219 | ||
| Weight | kg | 10.5 | ||
|
Outdoor Unit
|
Dimensions [HxWxD] | mm | 550 x 800 x 285 | |
| Weight | kg | 34.0 (VG)/35.0(VGD) | ||
| Breaker Size | A | 10 | ||
|
Piping
|
Diameter [Liquid/Gas] | mm | ø6.35/ø9.52 | |
| Max. Length/Height | m | 20/12 | ||
|
Guaranteed Operating Range [Outdoor]
|
Cooling | °C | -10 ~ 46 | |
| Heating | °C | -15 ~ 24 | ||
| Refrigerant Amount [Pre-Charged] | kg | 0.7 | ||
