Mitsubishi Electric PEAMS125HAAV Ducted Air Conditioner – 12.5 kW
Mitsubishi Electric PEAMS125HAAV Ducted Air Conditioner – 12.5 kW is backordered and will ship as soon as it is back in stock.
Description
Description

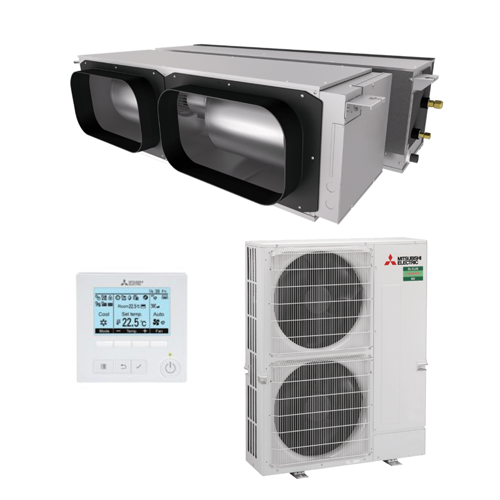

Maintain perfect indoor comfort year-round with the Mitsubishi Electric PEA-M125HAAV Ducted Kit. Featuring a 2-piece design and optional zoning, this system is ideal for home renovations or new installations, providing flexible airflow control and smart home integration for ultimate convenience.
Key Features
- Cooling Capacity: 12.5 kW | Heating Capacity: 14 kW
- High External Static Pressure: Up to 150 Pa for versatile ducting options

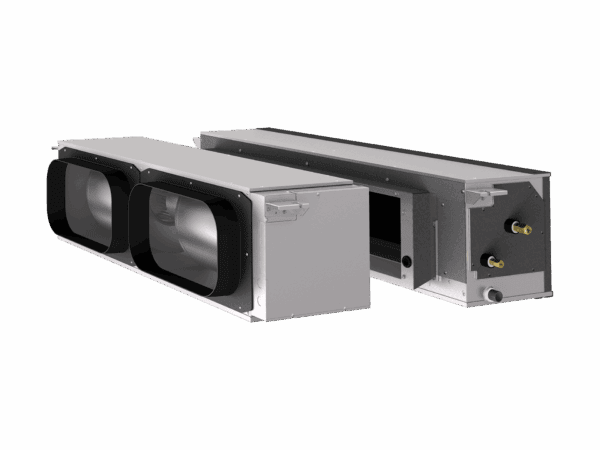

- 2-Piece Construction: Perfect for renovations or homes with limited installation space
- Flexible Design: Supports optional zoning for targeted comfort control
- Smart Home Integration: Compatible with home automation systems
- 4 Fan Speed Settings: Customisable airflow for optimal comfort
Applications
- Residential ducted air conditioning for single or multi-zone setups
- Homes undergoing renovation or retrofit installations
- Ideal for spaces requiring precise temperature control and smart home compatibility
Why Choose This Product?
The PEAMS125HAAV Ducted Kit combines high-capacity heating and cooling, flexible installation, and smart home integration, offering a comfortable, energy-efficient, and modern solution for year-round climate control.
| Indoor Unit | PEA-M125HAA | |||
| Outdoor Unit | PUZ-M125VKA-A | |||
| Refrigerant | R32 | |||
|
Power Supply
|
Source | Outdoor power supply | ||
| Outdoor | V: 230V, Single-phase, 50Hz | |||
| Indoor | ||||
|
Cooling
|
Capacity [Min-Rated*4-Max] | kW | 6.00 – 12.00 – 13.50 | |
| Total Input [Rated]*4 | kW | 3.78 | ||
| AEER/EER*1 | 3.10/3.17 | |||
|
TCSPF (Residential)
|
Hot | 4.3 | ||
| Average | 3.77 | |||
| Cold | 3.83 | |||
| Running Current [Rated]*4 | A | 17.4 | ||
|
Sound Pressure Level*2
|
In (Lo-Mid2- Mid1-Hi) (SPL) | dBA | 35 – 38 – 42 – 45 | |
| Out (PWL) | dBA | 54 (72) | ||
| Air Volume (In) Lo-Mid2-Mid1-Hi | L/s | 700 – 800 – 900 – 1000 |
||
|
Heating
|
Capacity [Min-Rated*5-Max] | kW | 4.10 – 14.00 – 15.50 | |
| Total Input [Rated]*5 | kW | 3.44 | ||
| ACOP/COP *1 | 3.69/4.06 | |||
|
HSPF (Residential)
|
Hot | 4.42 | ||
| Average | 3.87 | |||
| Cold | 3.27 | |||
| Running current [Rated]*5 | A | 16 | ||
|
Sound Pressure Level*2
|
In (Lo-Mid2 Mid1-Hi) (SPL) | dBA | 35 – 38 – 42 – 45 | |
| Out (PWL) | dBA | 56 (74) | ||
| Air Volume (In) Lo-Mid2-Mid1-Hi | L/s | 700 – 800 – 900 – 1000 |
||
| Max. Running Current | A | 30.2 | ||
|
Indoor Unit
|
Input [Rated] | kW | 0.477/0.477 | |
| Dimensions [HxWxD] | mm | 380 x 1405 x 900 | ||
| Weight | kg | 66 | ||
| Static Pressure | Pa | 50/100/150 | ||
|
Outdoor Unit
|
Dimensions [HxWxD] | mm | 981 x 1050 x 330 (+40) |
|
| Weight | kg | 84 | ||
| Breaker Size | A | 32 | ||
|
Ext.Piping
|
Diameter [Liquid/Gas] | mm | ø9.52/ø15.88 | |
| Max. Length/Height | m | 55/30 | ||
|
Guaranteed Operating Range [Outdoor]
|
Cooling*3 | °C | -15 ~ 46 | |
| Heating | °C | -15 ~ 21 | ||
| Supply Air Duct | mm | 1325 x 266 | ||
| Return Air Duct | mm | 2 x 400 (2 x 16”) | ||
| Pre-Charge Refrigerant | kg | 3.60 (30m) | ||
| Additional Refrigerant | g/m | 40 | ||
