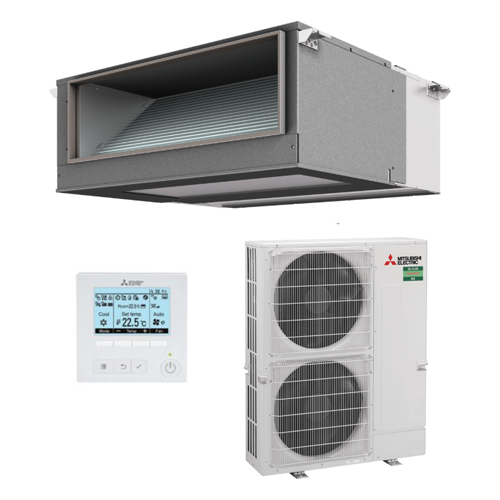

MITSUBISHI ELECTRIC PEA-M180LAA.TH 18.0kW Ducted Air Conditioning System 1 Phase
MITSUBISHI ELECTRIC PEA-M180LAA.TH 18.0kW Ducted Air Conditioning System 1 Phase is backordered and will ship as soon as it is back in stock.
Pickup available at HVACZone
Usually ready in 24 hours
Local Pickup Available
Local Pickup Available
We offer free local pickup from of Clyde North Store
MITSUBISHI ELECTRIC PEA-M180LAA.TH 18.0kW Ducted Air Conditioning S...
MITSUBISHI ELECTRIC PEA-M180LAA.TH 18.0kW Ducted Air Conditioning System 1 Phase is backordered and will ship as soon as it is back in stock.
Description
Description
The Mitsubishi Electric PEA-M LAA Series is an advanced high-static pressure ducted air conditioning system designed for powerful climate control with seamless ceiling integration. Built for residential and commercial applications, this system offers enhanced efficiency, superior airflow, and whisper-quiet operation, making it an ideal choice for large spaces and multi-room setups.
Key Features & Benefits
- Inverter Technology: Provides consistent cooling and heating with optimized energy efficiency.
- High Static Pressure: Capable of delivering airflow over long duct runs.
- Compact & Flexible Design: Designed for seamless installation into ceiling spaces.
- Quiet Operation: Low noise levels for ultimate indoor comfort.
- Wi-Fi Control Compatible*: Upgrade for remote operation via the Mitsubishi Electric Wi-Fi Control.
- Eco-Friendly R32 Refrigerant: Reduces environmental impact while maintaining peak efficiency.
| Indoor Unit | PEA-M180LAA | |||
| Outdoor Unit | PUZ-ZM180VKA | |||
| Refrigerant | R32 | |||
|
Power Supply
|
Source | Indoor/outdoor separate power supply | ||
| Outdoor | V: 230 V, Single-phase, 50 Hz | |||
| Indoor | 230 V, Single-phase, 50 Hz | |||
|
Cooling
|
Capacity [Min-Rated*1-Max] | kW | 4.90 – 18.00 – 20.00 | |
| Total Input [Rated]*1 | kW | 5.52 | ||
| AEER/EER | 3.20/3.26 | |||
|
TCSPF (Residential)
|
Hot | 4.62 | ||
| Average | 4.16 | |||
| Cold | 4.23 | |||
| Running Current [Rated]*1 | A | 22.23/5.45 | ||
|
Sound Pressure Level*2
|
In (Lo-Mid2- Mid1-Hi) (SPL) | dBA | 30 – 37.5 – 42 – 46 | |
| Out (PWL) | dBA | 58 (74) | ||
| Air Volume (In) Lo-Mid2-Mid1-Hi | L/s | 600 – 833 – 1017 – 1200 | ||
|
Heating
|
Capacity [Min-Rated*1-Max] | kW | 5.40 – 20.00 – 22.40 | |
| Total Input [Rated]*1 | kW | 5.1 | ||
| ACOP/COP | 3.84/3.92 | |||
|
HSPF (Residential)
|
Hot | 4.79 | ||
| Average | 4.18 | |||
| Cold | 3.58 | |||
| Running Current [Rated]*1 | A | 20.97/5.46 | ||
|
Sound Pressure Level*2
|
In (Lo-Mid2- Mid1-Hi) (SPL) | dBA | 30 – 37.5 – 42 – 46 | |
| Out (PWL) | dBA | 60 (76) | ||
| Air Volume (In) Lo-Mid2-Mid1-Hi | L/s | 600 – 833 – 1017 – 1200 | ||
|
Indoor Unit
|
Dimensions [HxWxD] | mm | 470 x 1370 x 1120 | |
| Weight | kg | 88 | ||
| Static Pressure | Pa | 75 – 100 – 150 – 200 – 250 | ||
| Max. Running Current | A | 4.8 | ||
|
Outdoor Unit
|
Dimensions [HxWxD] | mm | 1338 x 1050 x 330 (+40) | |
| Weight | kg | 115/116 | ||
| Max. Running Current | A | 28.22 (V)/9.27 (Y) | ||
| Breaker Size | A | 40 (V)/16 (Y) | ||
|
Ext. Piping
|
Diameter [Liquid/Gas] | mm | ø9.52/ø19.10 | |
| Max. Length/Height | m | 75/30 | ||
|
Guaranteed Operating Range [Outdoor]
|
Cooling | °C | -5(-15)*5 ~52 | |
| Heating | °C | -20 ~ 21 | ||
| Supply Air Duct | mm | 1100 x 340 | ||
| Return Air Duct | mm | 1100 x 420 | ||
| Pre-Charge Refrigerant | kg | 5.0 (30m) | ||
| Additional Refrigerant | g/m | 70*4 | ||
