Mitsubishi Electric PAC-ZC80L-E Zone Controller

The Mitsubishi Electric PAC-ZC80L-E Zone Controller provides advanced, energy-efficient control for ducted air conditioning systems. Designed for use with 24V dampers, it can manage up to 8 zones while optimising comfort and reducing energy usage through smart sensors and intuitive airflow management.

Key Features

• Backlit LCD touch screen with easy-to-use menus
• Standard PAR-ZC01ME-E Wired Wall Controller included
• Optional Wi-Fi control for remote management via smartphone, tablet, or online account
• Weekly timer for up to 8 temperature and airflow patterns per day
• Built-in temperature, occupancy, and brightness sensors
• Intuitive Airflow Control automatically adjusts fan speed based on open/closed zones
• Temperature range restriction and operation lock for consistent comfort
• Night Setback to save energy during unoccupied periods
• Auto Return restores original set temperatures after temporary changes

User-Friendly Control

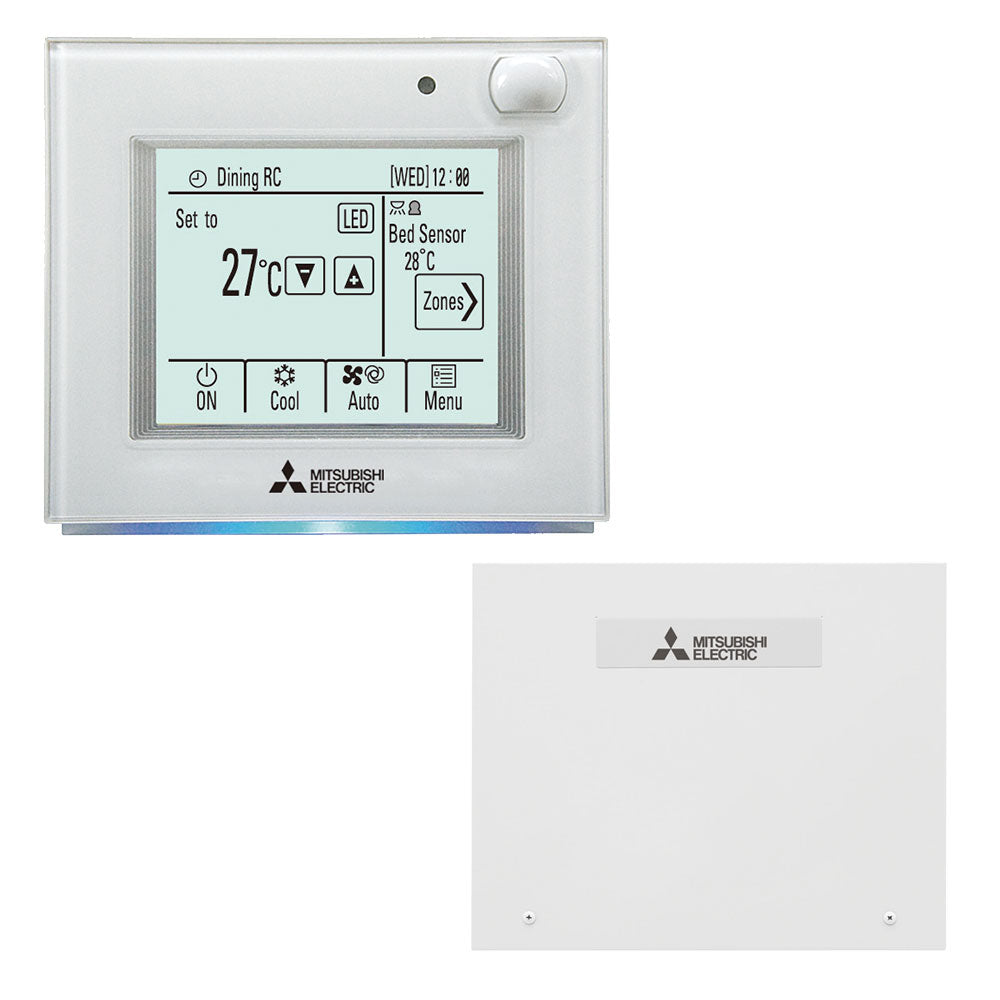

The PAC-ZC80L-E comes with the PAR-ZC01ME-E wired wall controller, featuring a backlit LCD touch screen and simple menus. Coloured LED indicators make operation intuitive: red for heating, blue for cooling, and green for Night Setback mode. Optional Wi-Fi connectivity extends control and monitoring capabilities, allowing users to manage multiple zones from anywhere.

Advanced Sensor Functions

• Temperature Sensor: Measures usable space temperature for precise comfort rather than just return air temperature.
• Occupancy Sensor: Detects unoccupied zones and applies one of four user-defined energy-saving options: turn unit On/Off, adjust fan speed, apply a temperature offset, or control specific zones.
• Brightness Sensor: Works with the occupancy sensor to optimise energy usage based on light conditions.

Energy-Saving and Automation Features

• Intuitive Airflow Control: Adjusts fan speed automatically based on which zones are open or closed, improving efficiency.
• Temperature Range Restriction: Prevents overheating or overcooling by limiting maximum and minimum temperature settings.
• Night Setback: Automatically activates heating or cooling during unoccupied periods to maintain comfort while saving energy.
• Auto Return: Restores the preset temperature after temporary adjustments, ensuring consistent comfort.

The PAC-ZC80L-E Zone Controller is ideal for homes, offices, and retail spaces seeking precise zone-based climate control with energy-efficient operation.

For full technical specifications, installation requirements, and compatibility, refer to the official Mitsubishi Electric datasheet.
