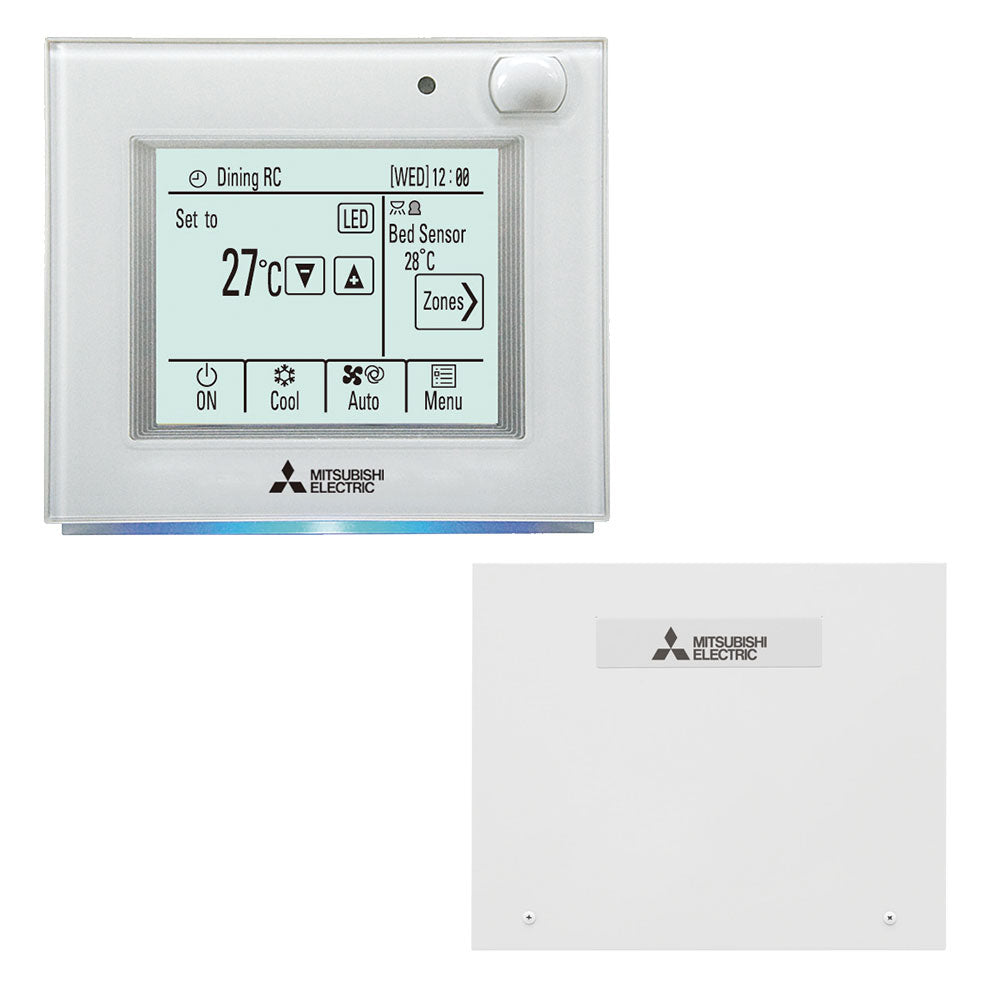

Mitsubishi Electric PAC-ZC80H-E Zone Controller

The Mitsubishi Electric PAC-ZC80H-E Zone Controller is designed to provide flexible, energy-efficient control for ducted air conditioning systems. Compatible with 240V dampers, it can manage up to 8 zones and integrates multiple sensors and smart airflow features to optimise comfort and reduce energy usage.

Key Features:

• Backlit LCD touch screen with intuitive menus
• Compatible with PAR-ZC01ME-E Wired Wall Controller
• Optional Wi-Fi control via Mitsubishi Electric app
• Weekly timer for up to 8 temperature and airflow patterns per day
• Built-in temperature, occupancy, and brightness sensors
• Intuitive Airflow Control automatically adjusts fan speed based on open/closed zones
• Temperature range restriction and operation lock
• Night Setback for energy savings during unoccupied periods
• Auto Return restores original set temperature after temporary adjustments

User-Friendly Control

The PAC-ZC80H-E comes standard with a PAR-ZC01ME-E wired wall controller. The backlit LCD touch screen and simple menus make it easy to monitor and adjust settings. Coloured LED indicators provide visual feedback on operation modes: red for heating, blue for cooling, and green for Night Setback.

Optional Wi-Fi connectivity allows remote control and monitoring from a smartphone, tablet, or online account, enabling users to manage multiple zones from anywhere.

Advanced Sensor Functions

• Temperature Sensor: Measures the actual temperature in the zone rather than just return air, ensuring precise comfort control.
• Occupancy Sensor: Detects whether a zone is in use and automatically adjusts fan speed or temperature settings to save energy.
• Brightness Sensor: Works with the occupancy sensor to maximise energy savings based on light levels.

Energy-Saving Features

• Intuitive Airflow Control: Automatically adjusts indoor fan speed based on which zones are open or closed, improving efficiency.
• Temperature Range Restriction: Limits maximum and minimum temperature settings to prevent overheating or overcooling.
• Night Setback: Automatically starts heating or cooling to maintain comfort while saving energy during unoccupied periods.
• Auto Return: Restores the originally set temperature after a temporary change for consistent comfort and energy efficiency.

The PAC-ZC80H-E Zone Controller is ideal for homes, offices, and retail spaces where zone-specific temperature control and energy savings are desired.

For detailed technical specifications, installation requirements, and compatibility, refer to the official Mitsubishi Electric datasheet.
