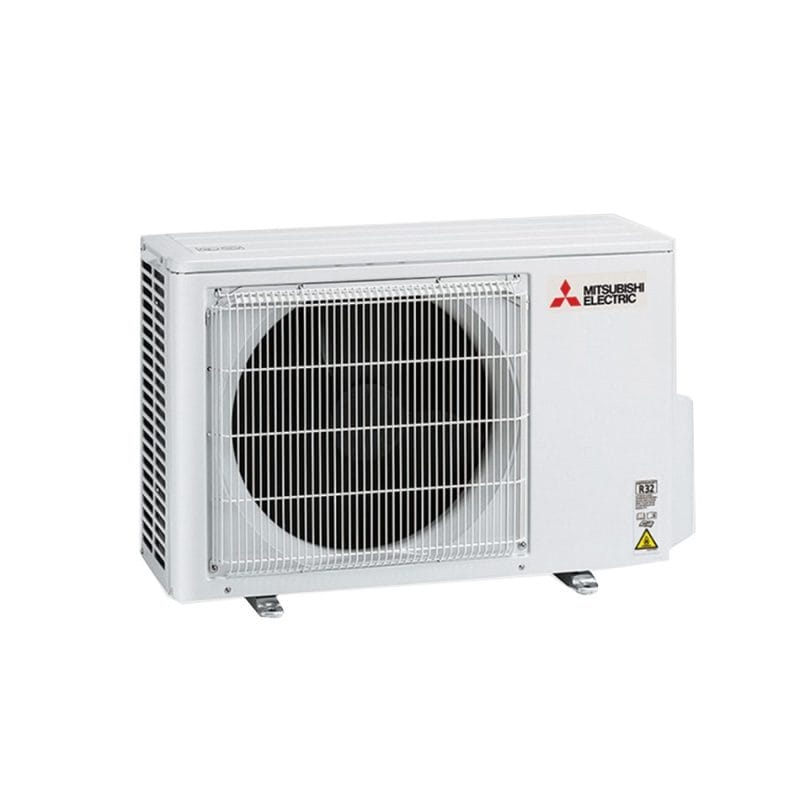

Mitsubishi Electric MXZ-2F52VF-A1 2-Port Multi-Split Outdoor Unit – 5.2 kW
Mitsubishi Electric MXZ-2F52VF-A1 2-Port Multi-Split Outdoor Unit – 5.2 kW is backordered and will ship as soon as it is back in stock.
Pickup available at HVACZone
Usually ready in 24 hours
Local Pickup Available
Local Pickup Available
We offer free local pickup from of Clyde North Store
Mitsubishi Electric MXZ-2F52VF-A1 2-Port Multi-Split Outdoor Unit –...
Mitsubishi Electric MXZ-2F52VF-A1 2-Port Multi-Split Outdoor Unit – 5.2 kW is backordered and will ship as soon as it is back in stock.
Description
Description
Achieve individualised comfort across multiple rooms with the Mitsubishi Electric MXZ-2F52VF-A1 2-Port Multi-Split Outdoor Unit. Designed for efficiency, flexibility, and quiet operation, this outdoor unit allows two indoor units to connect to a single outdoor unit, giving you precise control over each room while maintaining a sleek and unobtrusive exterior.
Key Features
- Cooling Capacity: 5.2 kW | Heating Capacity: 6.1 kW
- Two Connectable Indoor Units: Supports up to two indoor units for versatile setups
- Flexible Indoor Unit Choice: Compatible with a range of indoor unit types
- Quiet Operation: Low noise levels for comfortable living spaces
- Individual Room Control: Each indoor unit can be set to a personalised temperature
- Optional Wi-Fi Control: Manage your system remotely via the Mitsubishi Electric app
Applications
- Residential multi-room air conditioning setups
- Ideal for bedrooms, living rooms, or offices requiring independent temperature control
- Homes or small commercial spaces needing a flexible, quiet, and energy-efficient solution
Why Choose This Product?
The MXZ-2F52VF-A1 Multi-Split Outdoor Unit combines high-efficiency cooling and heating, quiet operation, and flexible indoor unit options, providing a perfect solution for multi-zone comfort in a single, compact outdoor unit.
| Outdoor Unit | MXZ-2F52 VF-A1 | |
| Refrigerant | R32 | |
| Precharge Refrigerant | 1 | |
| Power Supply (V, Phase, Hz) | 220V, single, 60Hz / 230V, single, 50Hz | |
|
Cooling Heating |
Capacity [Min-Rated- kW Max]
Total Input [Rated] kW AEER/EER Running Current [Rated] A [220V/60Hz – 230V/50Hz] |
1.1 – 5.2 – 5.6 |
| 1.38 | ||
| 3.72/3.77 | ||
| 6.5 – 6.3 | ||
| Sound Pressure Level Out [PWL] | 61 | |
| Capacity [Min-Rated- kW Max] |
1.0 – 6.1 – 7.0 | |
|
Total Input [Rated] kW ACOP/COP
Running Current [Rated] A [220V/60Hz – 230V/50Hz] |
1.49 | |
| 4.05/4.09 | ||
| 7.1 – 6.7 | ||
| Sound Pressure Level Out [PWL] | 63 | |
| Max. Running Current A | 12.2 | |
|
Breaker Size
Outdoor Dimensions [HxWxD]mm |
15 | |
| 550 × 800 × 285 | ||
| Unit Weight kg | 37 | |
|
Piping
|
Diameter [Gas/Liquid] mm | 9.52 x 2 / 6.35 x 2 |
| Max. Length m [Total-Each] |
30 – 20 | |
|
Max. Height
Guaranteed Operating Range [Outdoor] |
15 /10 *1 | |
| Cooling °C | -10 ~ 46 | |
| Heating °C | -15 ~ 24 | |
