Mitsubishi Electric PEAMS100HAAV Ducted Air Conditioner – 10 kW
Mitsubishi Electric PEAMS100HAAV Ducted Air Conditioner – 10 kW is backordered and will ship as soon as it is back in stock.
Pickup available at HVACZone
Usually ready in 24 hours
Local Pickup Available
Local Pickup Available
We offer free local pickup from of Clyde North Store
Mitsubishi Electric PEAMS100HAAV Ducted Air Conditioner – 10 kW
Mitsubishi Electric PEAMS100HAAV Ducted Air Conditioner – 10 kW is backordered and will ship as soon as it is back in stock.
Description
Description

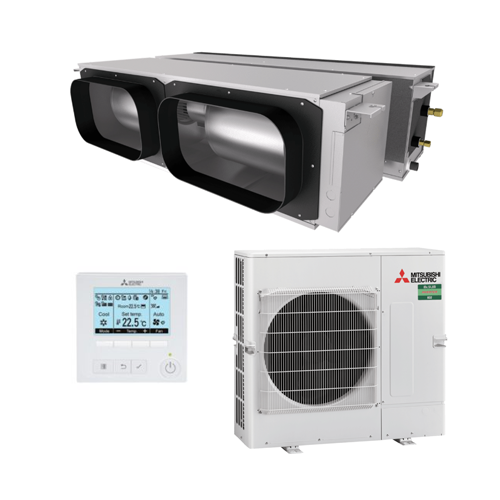

Maintain perfect indoor comfort all year with the Mitsubishi Electric PEA-M100HAAV Ducted Kit. Designed for flexibility and efficiency, this 2-piece ducted system is ideal for home renovations or new installations, offering optional zoning and smart home integration for total control.
Key Features
- Cooling Capacity: 10 kW | Heating Capacity: 12.5 kW
- High External Static Pressure: Up to 150 Pa for flexible ducting
- 2-Piece Construction: Ideal for renovations and existing home installations
- Flexibility in Design: Easy integration with multiple zoning options
- Smart Home Integration: Compatible with home automation systems
- 4 Fan Speed Settings: Customisable airflow for comfort and efficiency
Applications
- Residential ducted air conditioning for single or multi-zone setups
- Ideal for home renovations or spaces with limited installation access
- Homes requiring precise temperature control and smart home connectivity
Why Choose This Product?
The PEAMS100HAAV Ducted Kit combines high-capacity heating and cooling, flexible installation, and smart home integration, making it the perfect solution for modern, comfortable, and energy-efficient living spaces.
| Indoor Unit | PEA-M100HAA | |||
| Outdoor Unit | PUZ-M100VKA-A | |||
| Refrigerant | R32 | |||
|
Power Supply
|
Source | Outdoor power supply | ||
| Outdoor | V: 230V, Single-phase, 50Hz | |||
| Indoor | – | |||
|
Cooling
|
Capacity [Min-Rated*4-Max] | kW | 4.00 – 10.00 – 10.60 | |
| Total Input [Rated]*4 | kW | 3.02 | ||
| AEER/EER*1 | 3.21/3.31 | |||
|
TCSPF (Residential)
|
Hot | 4.73 | ||
| Average | 4.03 | |||
| Cold | 4.09 | |||
| Running Current [Rated]*4 | A | 13.8 | ||
|
Sound Pressure Level*2
|
In (Lo-Mid2- Mid1-Hi) (SPL) | dBA | 29 – 32 – 36 – 38 | |
| Out (PWL) | dBA | 52 (71) | ||
| Air Volume (In) Lo-Mid2-Mid1-Hi | L/s | 500 – 567 – 633 – 700 |
||
|
Heating
|
Capacity [Min-Rated*5-Max] | kW | 2.80 – 12.50 – 12.50 | |
| Total Input [Rated]*5 | kW | 3.24 | ||
| ACOP/COP *1 | 3.75/3.85 | |||
|
HSPF (Residential)
|
Hot | 4.39 | ||
| Average | 3.85 | |||
| Cold | 3.28 | |||
| Running current [Rated]*5 | A | 14.8 | ||
|
Sound Pressure Level*2
|
In (Lo-Mid2 Mid1-Hi) (SPL) | dBA | 29 – 32 – 36 – 38 | |
| Out (PWL) | dBA | 54 (72) | ||
| Air Volume (In) Lo-Mid2-Mid1-Hi | L/s | 500 – 567 – 633 – 700 |
||
| Max. Running Current | A | 23.4 | ||
|
Indoor Unit
|
Input [Rated] | kW | 0.187/0.187 | |
| Dimensions [HxWxD] | mm | 380 x 1405 x 900 | ||
| Weight | kg | 63 | ||
| Static Pressure | Pa | 50/100/150 | ||
|
Outdoor Unit
|
Dimensions [HxWxD] | mm | 981 x 1050 x 330 (+40) |
|
| Weight | kg | 76 | ||
| Breaker Size | A | 32 | ||
|
Ext.Piping
|
Diameter [Liquid/Gas] | mm | ø9.52/ø15.88 | |
| Max. Length/Height | m | 55/30 | ||
|
Guaranteed Operating Range [Outdoor]
|
Cooling*3 | °C | -15 ~ 46 | |
| Heating | °C | -15 ~ 21 | ||
| Supply Air Duct | mm | 1325 x 266 | ||
| Return Air Duct | mm | 2 x 400 (2 x 16”) | ||
| Pre-Charge Refrigerant | kg | 3.10 (30m) | ||
| Additional Refrigerant | g/m | 40 | ||
