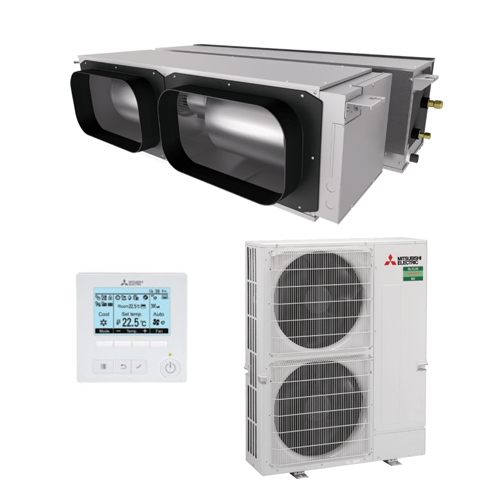

MITSUBISHI ELECTRIC PEA-M160HAA / PUZ-ZM160VKA-A.TH 16.0kW Ducted Air Conditioner 1 Phase
MITSUBISHI ELECTRIC PEA-M160HAA / PUZ-ZM160VKA-A.TH 16.0kW Ducted Air Conditioner 1 Phase is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at HVACZone
Local Pickup Available
Local Pickup Available
We offer free local pickup from of Clyde North Store
MITSUBISHI ELECTRIC PEA-M160HAA / PUZ-ZM160VKA-A.TH 16.0kW Ducted Air Conditioner 1 Phase is backordered and will ship as soon as it is back in stock.
Description
Description
Keep your home at the ideal temperature all year long with the PEA-M160HAA ducted air conditioning unit, with a 2-piece design, optional zoning and smart home integration for ultimate control.
The new PEA-M Series is designed to suit Australian homes with guaranteed cooling performance at higher ambient temperatures and heating performances at low ambient conditions. It complements the aesthetically designed house with concealed installation, a wide range of capacities and airflows to best suit the comfort conditions.
A new 16 kW model has been added to the range. The 16 kW indoor model can be connected to either a single-phase or three-phase Mr Slim outdoor unit.
Seamless integration for renovations
Crafted with an innovative 2-piece design, this ducted air conditioning system is specifically tailored for homes with restricted roof space and access, as well as for a hassle-free installation. The fan section can be separated from the heat exchanger for easier handling of the unit into the roof space before final assembly. This reverse cycle air conditioner is ideal for house renovation projects where the unit can be concealed in the roof space away from view.
Smart control for modern living
Take full control of your ducted air conditioning systems with optional Wi-Fi control. Offering convenience, homeowners can adjust settings, manage zones and schedule operations from almost anywhere inside the house or even remotely. Whether you’re using a smartphone, Google Assistant, or Amazon Alexa device, controlling your home’s climate has never been easier or more intuitive. Forgetting to switch your air conditioner off is an issue of the past—with simply the press of a button, you can easily turn your unit off from afar and save energy. Better yet, you can activate your ducted air conditioner while you’re out, ensuring you come home to a warm and cosy home in winter or a cool breeze during summer.
Comprehensive climate solution
Ensuring every corner of your home remains at your desired temperature, the PEA-M160HAA ducted system offers a holistic solution to whole-home climate control. Designed to be discrete, you’ll be free to enjoy up to 8 optional zones without compromising on your home’s aesthetics. With a single outdoor unit and indoor unit, and an optional zone controller, you can add 8 additional zones to ensure efficient airflow distribution throughout your home. Striking a perfect balance of functionality and style, this reverse cycle cooling system provides you with a pleasant interior ambience without disrupting your decor.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.
| Indoor Unit | PEA-M160HAA | |||
| Outdoor Unit | PUZ-ZM160VKA | |||
| Refrigerant | R32 | |||
|
Power Supply
|
Source | Outdoor power supply | ||
| Outdoor | V: 230 V, Single-phase, 50 Hz | |||
| Indoor | ||||
|
Cooling
|
Capacity [Min-Rated*4-Max] | kW | 4.70 – 16.00 – 17.00 | |
| Total Input [Rated]*4 | kW | 4.95 | ||
| AEER/EER*1 | 3.16/3.23 | |||
|
TCSPF (Residential)
|
Hot | 5.15 | ||
| Average | 4.45 | |||
| Cold | 4.56 | |||
| Running Current [Rated]*4 | A | 19.12 | ||
|
Sound Pressure Level*2
|
In (Lo-Mid2- Mid1-Hi) (SPL) | dBA | 35 – 38 – 42 – 45 | |
| Out (PWL) | dBA | 58 (74) | ||
| Air Volume (In) Lo-Mid2-Mid1-Hi | L/s | 700 – 800 – 900 – 1000 | ||
|
Heating
|
Capacity [Min-Rated*5-Max] | kW | 5.40 – 18.00 – 20.00 | |
| Total Input [Rated]*5 | kW | 4.58 | ||
| ACOP/COP | 3.84/3.93 | |||
|
HSPF (Residential)
|
Hot | 4.73 | ||
| Average | 4.16 | |||
| Cold | 3.62 | |||
| Running current [Rated]*5 | A | 17.95 | ||
|
Sound Pressure Level*2
|
In (Lo-Mid2 Mid1-Hi) (SPL) | dBA | 35 – 38 – 42 – 45 | |
| Out (PWL) | dBA | 59 (75) | ||
| Air Volume (In) Lo-Mid2-Mid1-Hi | L/s | 700 – 800 – 900 – 1000 | ||
| Max. Running Current | A | 33.06 | ||
|
Indoor Unit
|
Input [Rated] | kW | – | |
| Dimensions [HxWxD] | mm | 380 x 1405 x 900 | ||
| Weight | kg | 66 | ||
| Static Pressure | Pa | 50 – 100 – 150 | ||
|
Outdoor Unit
|
Dimensions [HxWxD] | mm | 1338 x 1050 x 330 (+40) | |
| Weight | kg | 115 | ||
| Breaker Size | A | 40 | ||
|
Ext.Piping
|
Diameter [Liquid/Gas] | mm | ø9.52/ø19.10 | |
| Max. Length/Height | m | 75/30 | ||
|
Guaranteed Operating Range [Outdoor]
|
Cooling*3 | °C | -5(-15) ~ 52 | |
| Heating | °C | -20 ~ 21 | ||
| Supply Air Duct | mm | 1325 x 266 | ||
| Return Air Duct | mm | 2 x 400 (2 x 16”) | ||
| Pre-Charge Refrigerant | kg | 5.00 (30m) | ||
| Additional Refrigerant | g/m | 70 (up to 60m)*4 | ||
