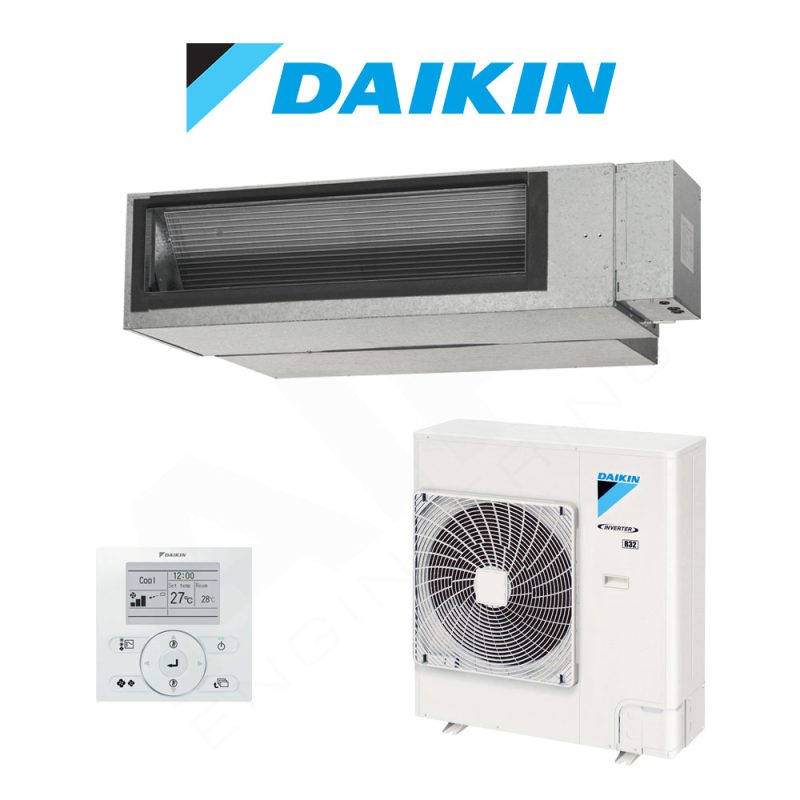

Daikin Premium Inverter FDYA85A9-C2V 8.5kW Ducted Air Conditioner – Single Phase
Daikin Premium Inverter FDYA85A9-C2V 8.5kW Ducted Air Conditioner – Single Phase is backordered and will ship as soon as it is back in stock.
Pickup available at HVACZone
Usually ready in 24 hours
Local Pickup Available
Local Pickup Available
We offer free local pickup from of Clyde North Store
Daikin Premium Inverter FDYA85A9-C2V 8.5kW Ducted Air Conditioner –...
Daikin Premium Inverter FDYA85A9-C2V 8.5kW Ducted Air Conditioner – Single Phase is backordered and will ship as soon as it is back in stock.
Description
Description
The Daikin Premium Inverter FDYA85A9-C2V 8.5kW Ducted Air Conditioner from Daikin delivers whole-home comfort with superior energy efficiency. Designed for seamless installation, this ducted system provides consistent heating and cooling throughout your home while maintaining quiet operation, making it ideal for Australian living.
Featuring advanced inverter technology, the Premium Inverter range ensures industry-leading energy performance, precise temperature control, and R22 retrofit capability, providing a cost-effective upgrade from older systems. With refrigerant-cooled PCB technology, the outdoor unit can operate continuously in ambient temperatures up to 50°C, ensuring reliable performance in even the hottest conditions.
Key Features:
- Reverse Cycle: Heating & Cooling for year-round comfort
- Night Time Quiet Mode: Reduces outdoor noise during sleeping hours
- Industry Leading Energy Performance: Optimised with DC fan motor, improved refrigerant control, and cross-pass heat exchanger
- Increased Operation Limits: Continuous operation up to 50°C ambient
- R22 Retrofit Capability: Upgrade existing R22 ducted systems without major piping changes (excludes 18.0kW, 20.0kW & Heating Focus models)
- Australian Made Indoor Units: Designed for harsh local climates
| INDOOR UNIT | FDYA85AV19 | |
| OUTDOOR | RZAS85C2V1 | |
|
Rated Capacity
|
Cool (kW) | 8.5 |
| Heat (kW) | 10 | |
|
Capacity Range
|
Cool (kW) | 3.7-10.0 |
| Heat (kW) | 3.0-11.2 | |
|
Power Input (Rated)
|
Cool (kW) | 2.35 |
| Heat (kW) | 2.46 | |
| E.E.R/C.O.P | C/H | 3.62/4.07 |
| TCSPF (Residential) | Hot/Average/Cold | 4.99/4.40/4.45 |
| HSPF (Residential) | Hot/Average/Cold | 4.43/4.04/3.60 |
| Airflow Rate (Nominal/Max) | l/s | 580/600 |
| Indoor Sound Level (H) @ 1.5m | dBA (C/H) | 42.0/42.5 |
| Piping Length | m | 75 |
| Indoor Fan Speeds | H/M/L | |
|
Dimensions (HxWxD)
|
Indoor (mm) | 300x1210x900 |
| Outdoor (mm) | 990x940x320 | |
|
Weight
|
Indoor (kg) | 41 |
| Outdoor (kg) | 78 | |
| Power Supply | V/Hz | 1 Phase, 220-240V, 50Hz |
| Compressor Type | Hermetically Sealed Swing Type | Hermetically Sealed Swing Type |
| Refrigerant | R32 | |
|
Pipe Sizes
|
Liquid (mm) | 9.5 (Flared) |
| Gas (mm) | 15.9 (Flared) | |
| Drain (mm) | ID 25 / OD 32 | |
| Supply Air Opening | mm (HxW, Flange) | 185×852 |
| Return Air Opening | mm | 1×400 (Oval) |
|
Outdoor Operating Range
|
Cool (ºCDB) | -5 to 50 |
| Heat (ºCWB) | -15 to 16 | |
| EPA Sound Power Level | dBA | 71 |
| Outdoor Sound Level (H) @ 1m | Pressure dBA (C/H) | 52/53 |
