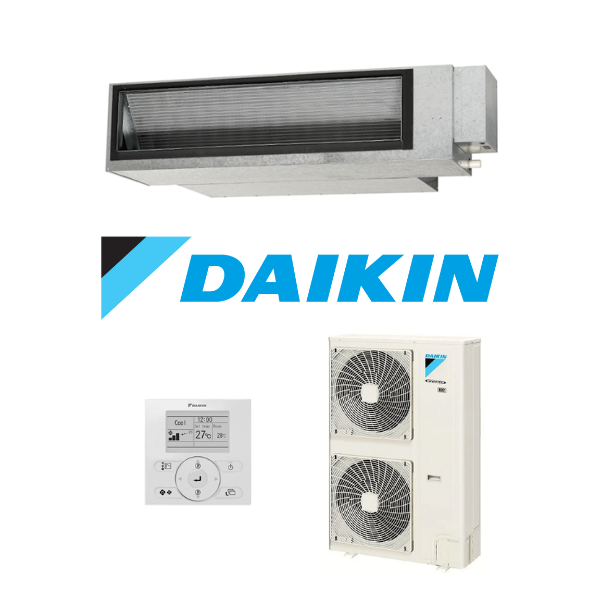

Daikin FDYAN160A-C2V – 16.0kW Premium Inverter Ducted Air Conditioning System
Daikin FDYAN160A-C2V – 16.0kW Premium Inverter Ducted Air Conditioning System is backordered and will ship as soon as it is back in stock.
Pickup available at HVACZone
Usually ready in 24 hours
Local Pickup Available
Local Pickup Available
We offer free local pickup from of Clyde North Store
Daikin FDYAN160A-C2V – 16.0kW Premium Inverter Ducted Air Condition...
Daikin FDYAN160A-C2V – 16.0kW Premium Inverter Ducted Air Conditioning System is backordered and will ship as soon as it is back in stock.
Description
Description
The Daikin FDYAN160A-C2V is a powerful and energy-efficient ducted air conditioning solution designed for larger homes and light commercial applications. Featuring advanced inverter technology, this system delivers consistent climate control, quiet operation, and superior energy performance all year round.
With flexible zoning capabilities and discreet ceiling-concealed installation, the FDYAN160A-C2V provides whole-home comfort without compromising aesthetics. Engineered for the harsh Australian climate, Daikin’s premium ducted systems are renowned for reliability, powerful airflow, and intelligent temperature control.
Key Features:
- 16.0kW cooling capacity
- Advanced inverter technology for improved efficiency
- Quiet and discreet operation
- Ideal for large homes and commercial spaces
- Compatible with zoning options for customised comfort
- Reliable performance in Australian conditions
- Wi-Fi control compatibility available
Perfect for homeowners and builders seeking premium whole-home air conditioning comfort with trusted Daikin performance.

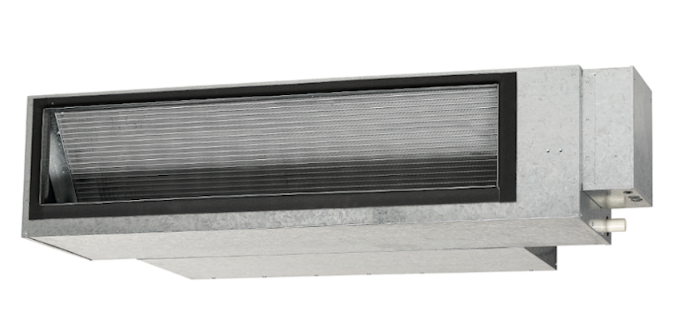

| INDOOR UNIT | FDYAN160AV1 | |

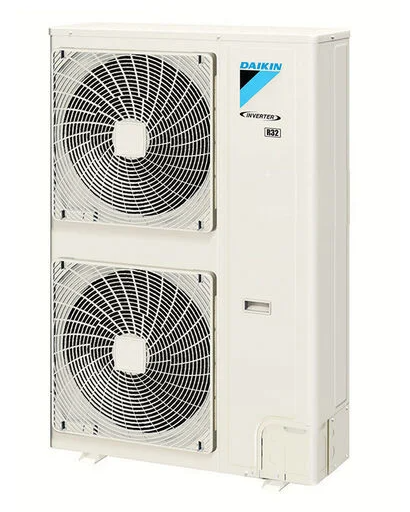

| OUTDOOR UNIT | RZA160C2V1 | |
|
Rated Capacity
|
Cool (kW) | 15.5 |
| Heat (kW) | 18 | |
|
Capacity Range
|
Cool (kW) | 7.3-16.3 |
| Heat (kW) | 7.3-18.2 | |
|
Power Input (Rated)
|
Cool (kW) | 4.95 |
| Heat (kW) | 4.9 | |
| E.E.R/C.O.P | C/H | 3.13/3.67 |
| TCSPF (Residential) | Hot/Average/ Cold | 4.05/3.76/3.86 |
| HSPF (Residential) | Hot/Average/ Cold | 3.87/3.53/3.12 |
| Airflow Rate (Nominal/Max) | l/s | 950/1120 |
| Indoor Sound Level (H) @1.5m | dBA (C/H) | 47.9/50.7 |
| Piping Length | m | 50 |
| Indoor Fan Speeds | H/M/L | |
|
Dimensions (HxWxD)
|
Indoor (mm) | 360x1520x935 |
| Outdoor (mm) | 1430x940x320 | |
|
Weight
|
Indoor (kg) | 56 |
| Outdoor (kg) | 99 | |
| Power Supply | V/Hz | 1 Phase, 220-240V, 50Hz |
| Compressor Type |
Hermetically Sealed Swing Type
|
|
| Refrigerant | R32 | |
|
Pipe Sizes
|
Liquid (mm) | 9.5 (Flare) |
| Gas (mm) | 15.9 (Flare) | |
| Drain (mm) | ID 25 / OD 32 | |
| Supply Air Opening | mm (HxW, Flange) | 245×1152 |
| Return Air Opening | mm | 2×400 (Oval) |
|
Outdoor Operating Range
|
Cool (ºCDB) | -5 to 46 |
| Heat (ºCWB) | -15 to 16 | |
| EPA Sound Power Level | dBA | 75 |
| Outdoor Sound Level (H) @1m | Pressure dBA (C/H) | 56/58 |
